901471114 C-Grid III by Molex

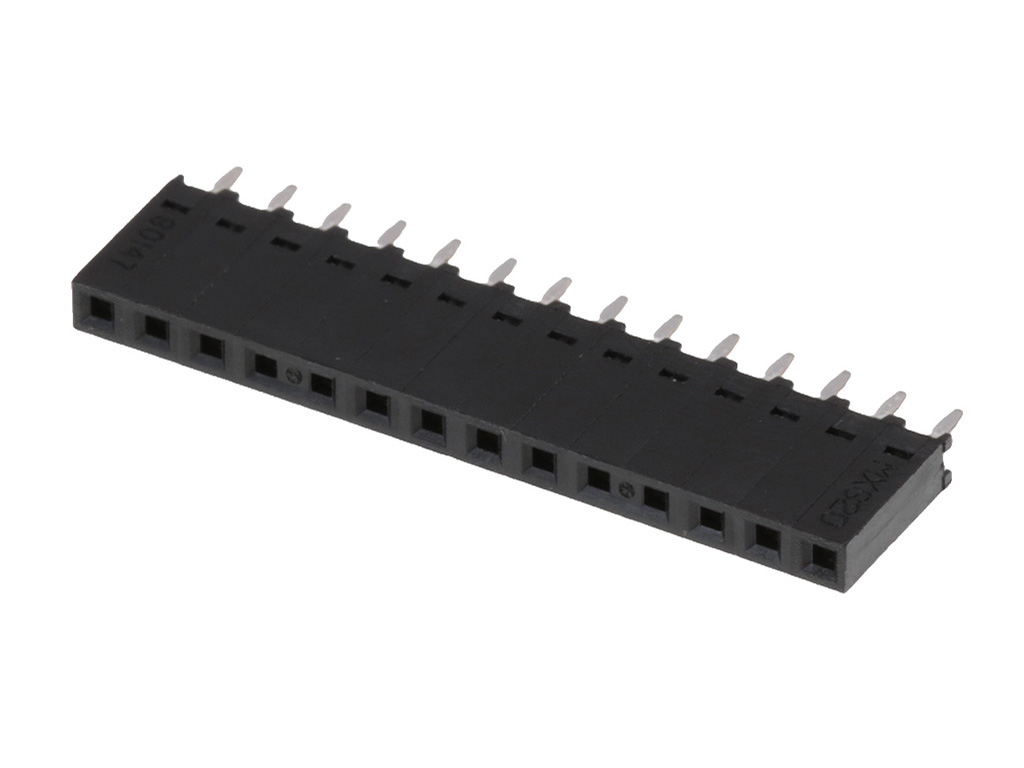

C-Grid III PCB Receptacle, 2.54mm Pitch, Single Row, Vertical, Shrouded, 14 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90147-1114,
0901471114 |
Where to Buy
Prices starting from US$1.08
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.19
|
1,022
in stock
|
Buy Now |
|
Farnell
from US$3.74
|
444
in stock
|
Buy Now |
|
Heilind Americas
from US$3.27
|
129
in stock
|
Buy Now |
|
Newark Electronics
from US$3.27
|
18
in stock
|
Buy Now |
|
Avnet America
from US$2.67
|
0
in stock
|
Buy Now |
|
TME
from US$2.74
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.78
|
0
in stock
|
Buy Now |
|
Conrad
from US$5.04
|
0
in stock
|
Buy Now |
|
Sager
from US$2.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.08
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 350V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Mounting Style | Through Hole |
| Net Weight | 1.204/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| C-GRID PC BOARD CONNECTOR 14CI | TTI Europe |
| CONNECTOR, RCPT, 14POS, 2.54MM | Farnell |
| CGRID PCB CONN SR VT TNA 14CKT | Heilind Americas |
| Connector, Rcpt, 14Pos, 2.54Mm | Newark Electronics |
| Conn Socket Strip F 14 POS 2.54mm Solder ST Thru-Hole Tube | Avnet America |
| Connector: pin strips | TME |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 14 Rastermaß: 2.54 mm 901471114 1 St. Tube | Conrad |
| Headers & Wire Housings CGrid PCB Conn SR Vt TnA 14Ckt | Sager |
