901512108 C-Grid III by Molex

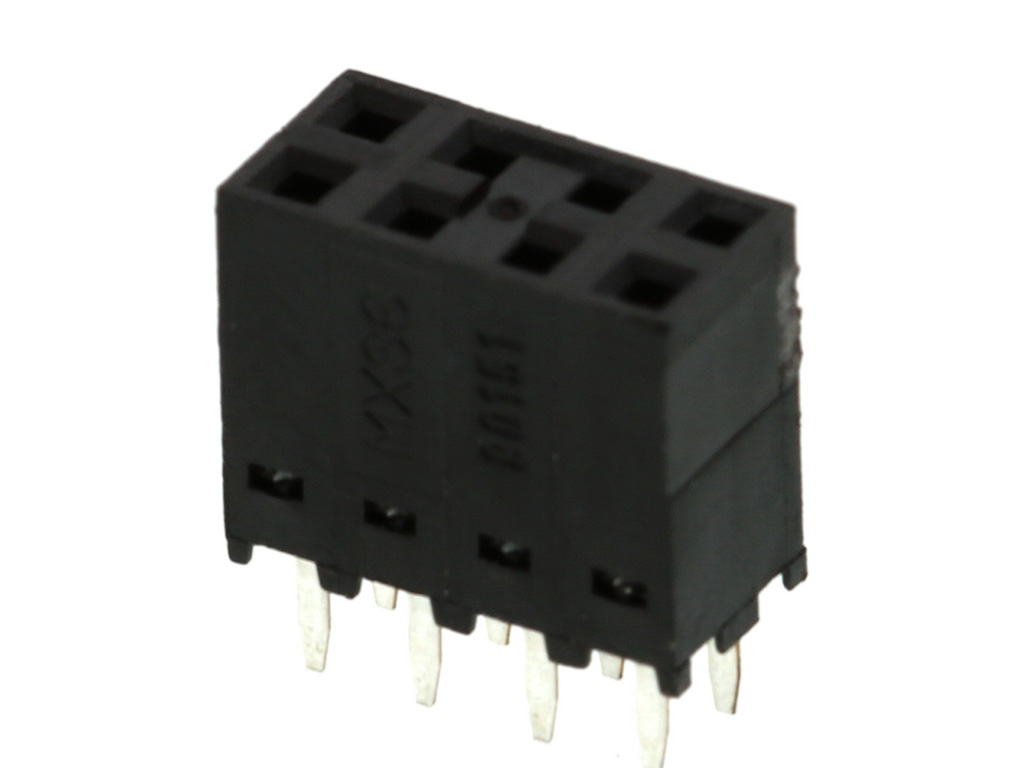

C-Grid III PCB Receptacle, 2.54mm Pitch, Dual Row, Vertical, 8 Circuits, Tin (Sn) Plating, Straight PCB Pins
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90151-2108,
0901512108 |
Where to Buy
Prices starting from US$0.64
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$5.53
|
33,529
in stock
|
Buy Now |
|
TME
from US$0.64
|
33,488
in stock
|
Buy Now |
|
Farnell
from US$3.33
|
30,212
in stock
|
Buy Now |
|
Newark Electronics
from US$3.44
|
255
in stock
|
Buy Now |
|
element14
from US$4.94
|
255
in stock
|
Buy Now |
|
Avnet Abacus
-
|
2,080
in stock
|
Buy Now |
|
RS
from US$1.17
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.33
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.73
|
0
in stock
|
Buy Now |
|
Sager
from US$3.29
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.66
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.74
|
0
in stock
|
Buy Now |
|
EME
from US$0.81
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 350V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.687/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Platine Polzahl Gesamt 8 901512108 1 St. Tube | Conrad |
| Connector: pin strips | TME |
| CONN, RCPT, 8POS, 2ROW, 2.54MM | Farnell |
| Connector, Rcpt, 8Pos, 2Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 8POS, 2ROW, 2.54MM | element14 |
| Molex 90151-2108 PCB Header | RS |
| CGRID PCB CONN DR VT TNA 8CKT | RS Americas |
| Headers & Wire Housings CGrid PCB Conn DR Vt TnA 8Ckt | Sager |
| C-GRID PCB CONN DR VT TN- T | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901512108?
Additional datasheets, footprints and schematics for 901512108 are listed on our Part Details page. You can also find images and similar parts to 901512108 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901512108 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901512108 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901512108 fall under?
The 901512108 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 901512108 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901512108 you can contact the distributor directly for product support, shipping queries etc.
Is the 901512108 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901512108 have stock available?
Authorised distributors including Conrad, TME, Farnell, Newark Electronics and element14 have stock available or on a lead time for 901512108.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901512108 often in real-time on the comparison pages.
What if I can't find stock of 901512108?
You can fill out our help required form which you can use to request a quote for 901512108 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
