901512110 C-Grid III by Molex

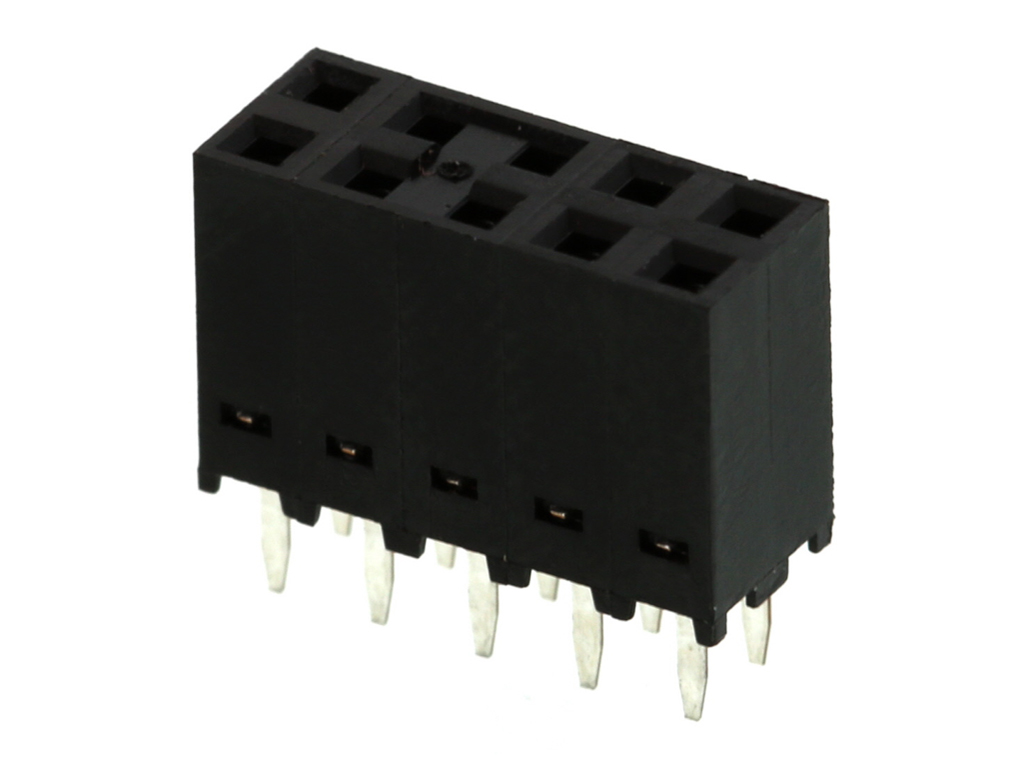

C-Grid III PCB Receptacle, 2.54mm Pitch, Dual Row, Vertical, 10 Circuits, Tin (Sn) Plating, Straight PCB Pins
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90151-2110,
0901512110 |
Where to Buy
Prices starting from US$0.95
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$3.48
|
7,705
in stock
|
Buy Now |
|
Farnell
from US$2.66
|
6,935
in stock
|
Buy Now |
|
RS
from US$2.15
|
132
in stock
|
Buy Now |
|
element14
from US$2.29
|
61
in stock
|
Buy Now |
|
Newark Electronics
from US$2.39
|
10
in stock
|
Buy Now |
|
TME
from US$1.88
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.95
|
0
in stock
|
Buy Now |
|
EME
from US$1.43
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 350V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.867/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Stackable | Yes |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 10 Rastermaß: 2.54 mm 901512110 1 St. Tube | Conrad |
| PCB RECEPTACLES | Farnell |
| Molex 90151-2110 PCB Socket | RS |
| CONNECTOR, RCPT, 10POS, 2.54MM | element14 |
| Connector, Rcpt, 10Pos, 2.54Mm | Newark Electronics |
| Connector: pin strips | TME |
| C-GRID PCB CONN DR VT TN-A 10 KT | Heilind Europe |
