901512120 C-Grid by Molex

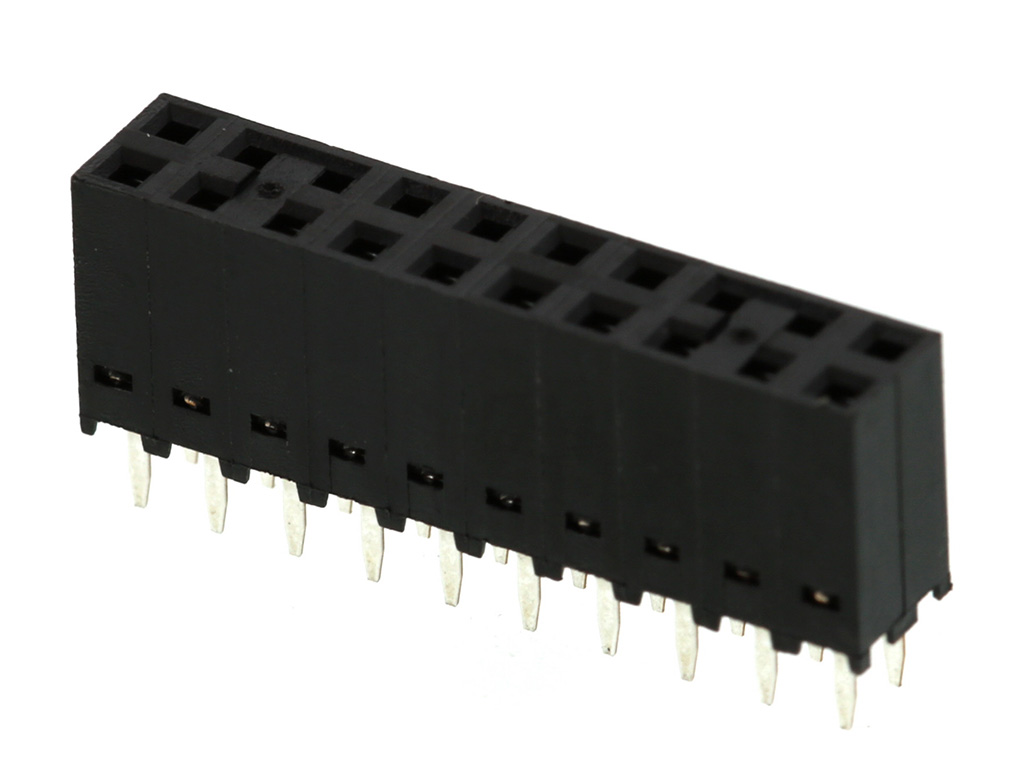

C-Grid III PC Board Connector, Dual Row, Vertical, 20 Circuits, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90151-2120,
0901512120 |
Where to Buy
Prices starting from US$1.36
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$6.12
|
1,683
in stock
|
Buy Now |
|
Farnell
from US$4.90
|
1,518
in stock
|
Buy Now |
|
TTI Europe
from US$2.72
|
286
in stock
|
Buy Now |
|
RS
from US$2.65
|
44
in stock
|
Buy Now |
|
Newark Electronics
from US$2.05
|
3
in stock
|
Buy Now |
|
Avnet Asia
-
|
175
in stock
|
Buy Now |
|
|
Avnet America
from US$3.16
|
0
in stock
|
Buy Now |
|
TME
from US$3.37
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.65
|
0
in stock
|
Buy Now |
|
Sager
from US$3.21
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.36
|
0
in stock
|
Buy Now |
|
EME
from US$1.93
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Grounding To Pcb | No |
| Voltage Maximum | 350V |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.730/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Through Hole |
