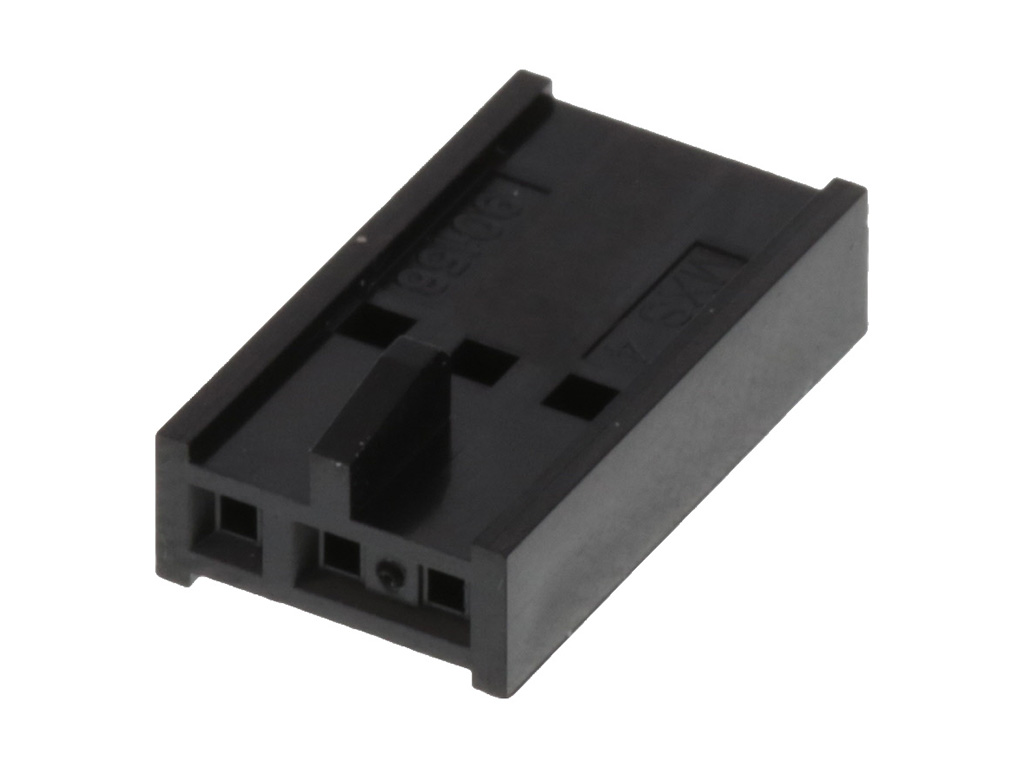

901560143 C-Grid III by Molex
2.54mm Pitch C-Grid III Crimp Housing Single Row, 3 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90156-0143,
0901560143 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.23
|
33,300
in stock
|
Buy Now |
|
Newark Electronics
from US$0.31
|
14,591
in stock
|
Buy Now |
|
element14
from US$0.26
|
14,459
in stock
|
Buy Now |
|
Farnell
from US$0.28
|
14,459
in stock
|
Buy Now |
|
RS
from US$0.42
|
3,160
in stock
|
Buy Now |
|
TME
from US$0.25
|
1,282
in stock
|
Buy Now |
|
EME
from US$0.26
|
200
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,835
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.31
|
0
in stock
|
Buy Now |
|
Compona
from US$0.17
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.17
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 3 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 0.293/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 2.54MM C-GRID III CRIMP HSG 3C | TTI Europe |
| Connector, Rcpt, 3Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 3POS, 1ROW, 2.54MM | element14 |
| Molex 90156-0143 Connector Housing | RS |
| Connector: wire-board | TME |
| Molex 901560143 C-grid Iii Crimp Housing 3 Pins 2.54mm Single Row | Rapid Electronics |
| MOLEX 90156-0143 Socket Square CGrid 3p Crimp without Contacts | Compona |
| C-GRID CRP CONN HSG SR FL POL 3CKT | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 901560143?
Additional datasheets, footprints and schematics for 901560143 are listed on our Part Details page. You can also find images and similar parts to 901560143 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 901560143 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 901560143 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 901560143 fall under?
The 901560143 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 901560143 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 901560143 you can contact the distributor directly for product support, shipping queries etc.
Is the 901560143 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 901560143 have stock available?
Authorised distributors including TTI Europe, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 901560143.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 901560143 often in real-time on the comparison pages.
What if I can't find stock of 901560143?
You can fill out our help required form which you can use to request a quote for 901560143 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
