901560149 C-Grid III by Molex

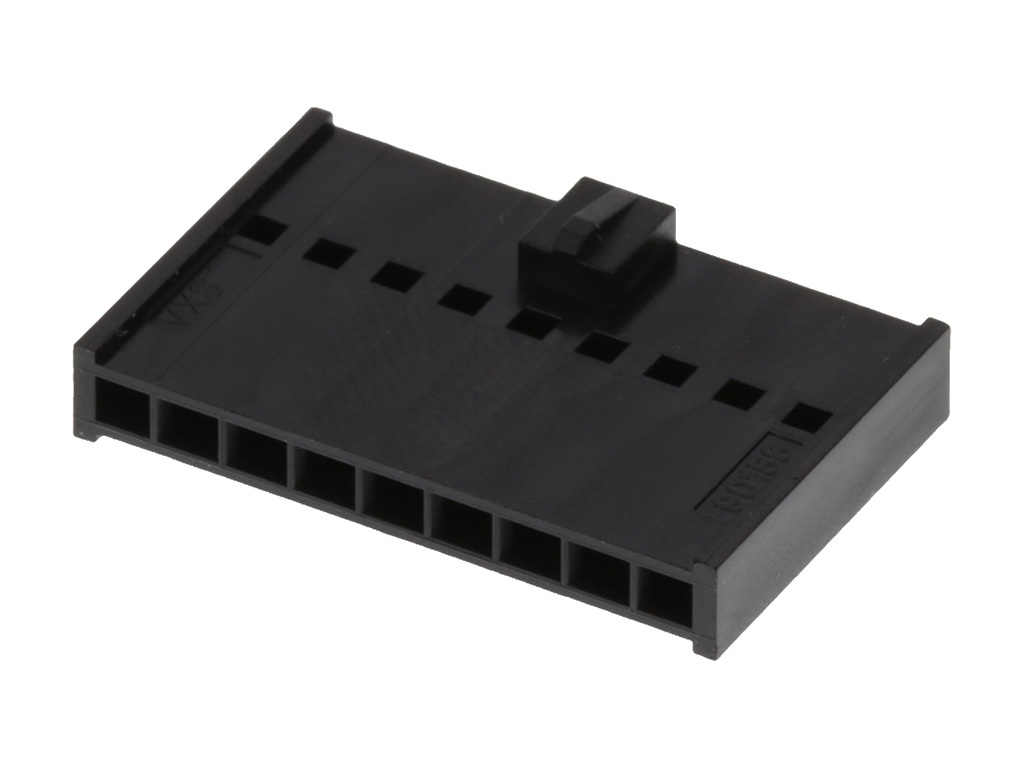

2.54mm Pitch C-Grid III Crimp Housing Single Row, 9 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90156-0149,
0901560149 |
Where to Buy
Prices starting from US$0.31
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.58
|
9,014
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
8,113
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
3,203
in stock
|
Buy Now |
|
element14
from US$0.58
|
3,203
in stock
|
Buy Now |
|
RS
from US$1.04
|
207
in stock
|
Buy Now |
|
TME
from US$0.48
|
115
in stock
|
Buy Now |
|
|
RS Americas
from US$0.31
|
9
in stock
|
Buy Now |
|
Heilind Americas
from US$0.55
|
8
in stock
|
Buy Now |
|
Offical Electronic
-
|
18
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.31
|
0
in stock
|
Buy Now |
|
EME
from US$0.50
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid III |
|---|---|
| Application | Wire-to-Board |
Physical |
|
|---|---|
| Circuits Maximum | 9 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Resin | PPO |
| Net Weight | 0.731/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 2.54mm |
| Temperature Range Operating | -55° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 9 Rastermaß: 2.54 mm 901560149 1 St. Bag | Conrad |
| PIN AND SOCKET CONNECTOR HOUSINGS | Farnell |
| Connector, Rcpt, 9Pos, 1Row, 2.54Mm | Newark Electronics |
| CONNECTOR, RCPT, 9POS, 1ROW, 2.54MM | element14 |
| Molex 90156-0149 Connector Housing | RS |
| Connector: wire-board | TME |
| C-GRID III SERIES 2.54MM PITCH 9 WAY 1 ROW FEMALE STRAIGHT PCB HOUSING 90156 | RS Americas |
| C-GRID CRP CONN HSG SR FL POL 9CKT | Heilind Americas |
| Conn Housing F 9 POS 2.54mm Crimp ST Cable Mount Bag | Avnet America |
