903270318 Picoflex by Molex

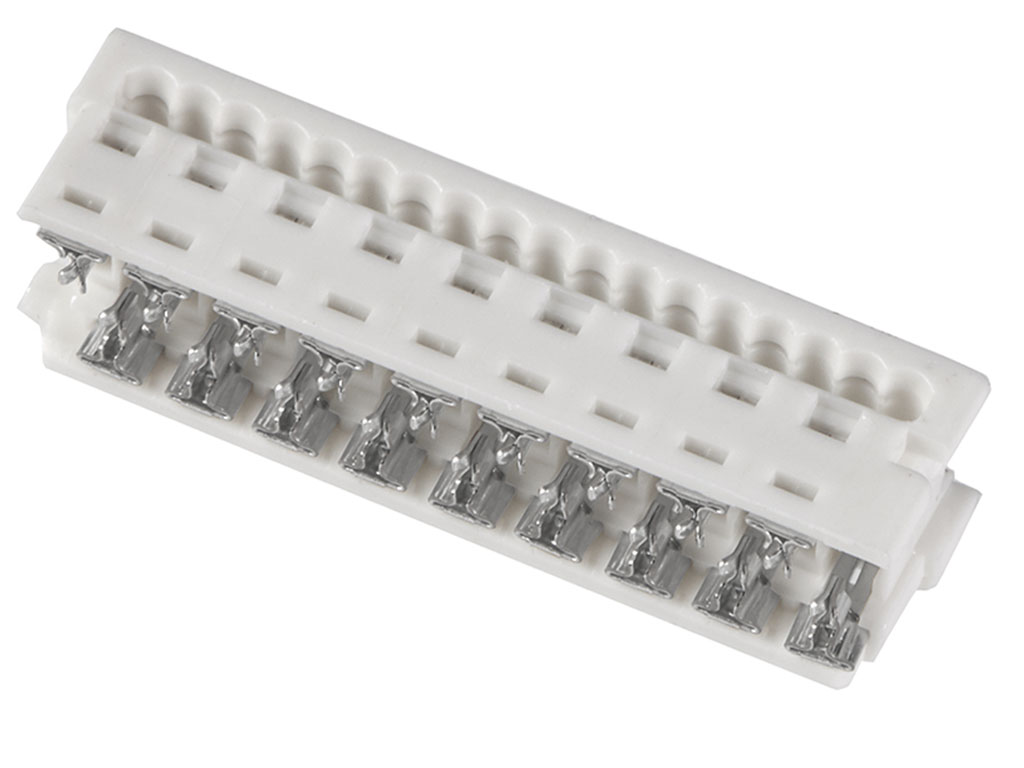

Picoflex PF-50, Low Profile, IDT Receptacle, 18 Circuits, White, Tin (Sn) Plated, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90327-0318,
0903270318 |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.44
|
9,800
in stock
|
Buy Now |
|
Conrad
from US$1.01
|
9,800
in stock
|
Buy Now |
|
Farnell
from US$0.53
|
8,854
in stock
|
Buy Now |
|
TTI Europe
from US$0.39
|
8,200
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.42
|
384
in stock
|
Buy Now |
|
TME
from US$0.50
|
268
in stock
|
Buy Now |
|
element14
from US$0.51
|
91
in stock
|
Buy Now |
|
RS
from US$0.56
|
35
in stock
|
Buy Now |
|
Heilind Americas
from US$0.51
|
1
in stock
|
Buy Now |
|
Avnet America
from US$0.43
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.73
|
0
in stock
|
Buy Now |
|
Compona
from US$0.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.40
|
0
in stock
|
Buy Now |
|
EME
from US$0.52
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 18 |
| Circuits Maximum | 18 |
| Color Resin | White |
| Durability Mating Cycles Max | 30 |
| Entry Angle | Vertical |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.073/g |
| Number Of Rows | 2 |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | IDT or Pierce |
| Wire Cable Type | Ribbon Cable |
| Wire Insulation Diameter | 1.00mm max. |
| Wire Size Awg | 26, 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 18Pos, 2Row, 1.27Mm | Newark Electronics |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 18 Rastermaß: 1.27 mm 903270318 1 St. Bag | Conrad |
| IDC CONN, RCPT, 18POS, 2ROW, 1.27MM | Farnell |
| PICOFLEX 18 CKT PF-50 CONNEC | TTI Europe |
| 1.27MM IDT 18P LOPRO TIN | TTI Americas |
| Connector: wire-board | TME |
| CONNECTOR, RCPT, 18POS, 2ROW, 1.27MM | element14 |
| Molex 90327-0318 Connector Housing | RS |
| 1.27MM PF CONN LOPRO IDT WHT SN 18CKT | Heilind Americas |
| Conn IDC Connector RCP 18 POS 2.54mm IDT RA Cable Mount Bag | Avnet America |
| 18 WAY IDT HOUSING,1.27MM PITCH LOW PROF | RS Americas |
| MOLEX 90327-0318 Board-in connector 18p | Compona |
| Headers & Wire Housings 1.27MM IDT 18P LOPRO TIN | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 903270318?
Additional datasheets, footprints and schematics for 903270318 are listed on our Part Details page. You can also find images and similar parts to 903270318 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 903270318 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 903270318 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 903270318 fall under?
The 903270318 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 903270318 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 903270318 you can contact the distributor directly for product support, shipping queries etc.
Is the 903270318 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 903270318 have stock available?
Authorised distributors including Newark Electronics, Conrad, Farnell, TTI Europe and TTI Americas have stock available or on a lead time for 903270318.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 903270318 often in real-time on the comparison pages.
