903273306 Picoflex by Molex

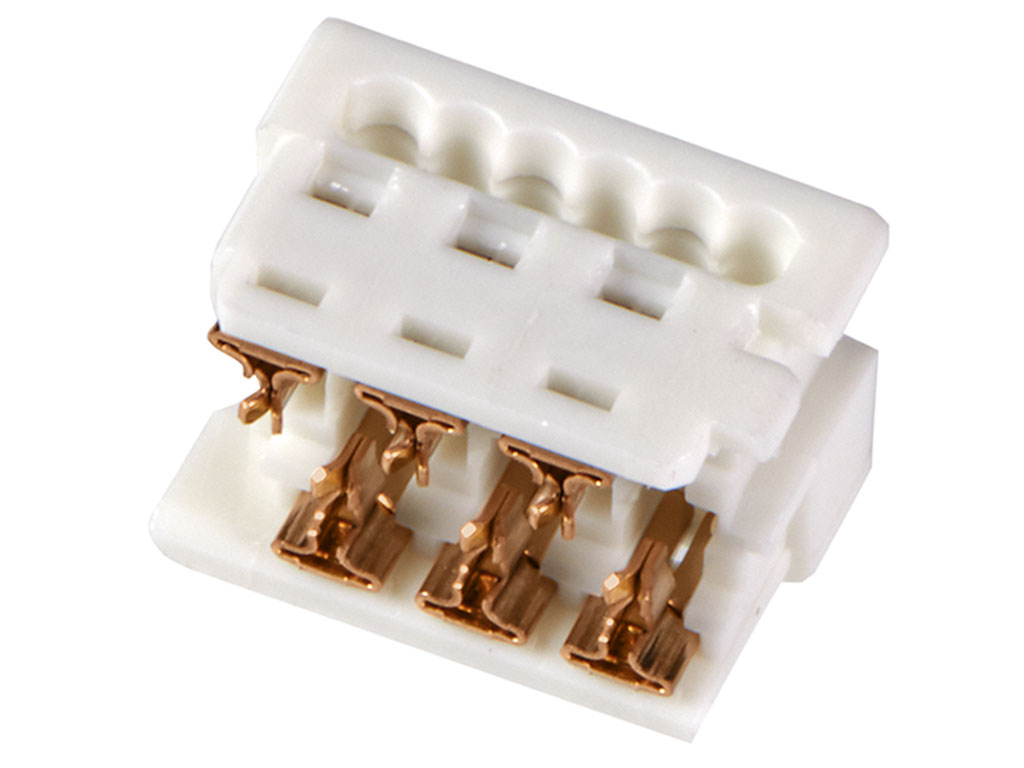

Picoflex PF-50, Low Profile, IDT Receptacle, 6 Circuits, White, Gold (Au) Plated, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90327-3306,
0903273306 |
Where to Buy
Prices starting from US$1.06
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.27
|
7,100
in stock
|
Buy Now |
|
Farnell
from US$1.73
|
6,993
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.25
|
6,310
in stock
|
Buy Now |
|
Newark Electronics
from US$1.75
|
500
in stock
|
Buy Now |
|
element14
from US$1.35
|
493
in stock
|
Buy Now |
|
RS
from US$3.31
|
226
in stock
|
Buy Now |
|
Heilind Americas
from US$1.06
|
132
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
1,312
in stock
|
Buy Now |
|
Offical Electronic
-
|
690
in stock
|
Buy Now |
|
Avnet America
from US$1.35
|
0
in stock
|
Buy Now |
|
TME
from US$1.88
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.69
|
0
in stock
|
Buy Now |
|
Compona
from US$1.28
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.15
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | White |
| Durability Mating Cycles Max | 100 |
| Entry Angle | Vertical |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Polyester |
| Net Weight | 1.096/g |
| Number Of Rows | 2 |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | IDT or Pierce |
| Wire Cable Type | Ribbon Cable |
| Wire Insulation Diameter | 1.00mm max. |
| Wire Size Awg | 26, 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| PICOFLEX 6 CKT PF-50 CONNEC | TTI Europe |
| IDC CONN, RCPT, 6POS, 2ROW, 1.27MM | Farnell |
| 1.27MM IDT 06P LOPRO AU | TTI Americas |
| Connector, Rcpt, 6Pos, 2Row, 1.27Mm | Newark Electronics |
| CONNECTOR, RCPT, 6POS, 2ROW, 1.27MM | element14 |
| Molex 90327-3306 IDC Connector | RS |
| 1.27MM PF CONN LOPRO IDT WHT 76AU 6CKT | Heilind Americas |
| Connector: wire-board | TME |
| PICOFLEX SERIES, RIGHT ANGLE CABLE MOUNT IDC CONN SOCKET,6 WAY,2 ROW,1.27MM PITCH | RS Americas |
| MOLEX 90327-3306 Picoflex 1.27mm IDT Recept. 6p, white Low Profile, Pd-Ni, Au Flash plated | Compona |
