903273320 Picoflex by Molex

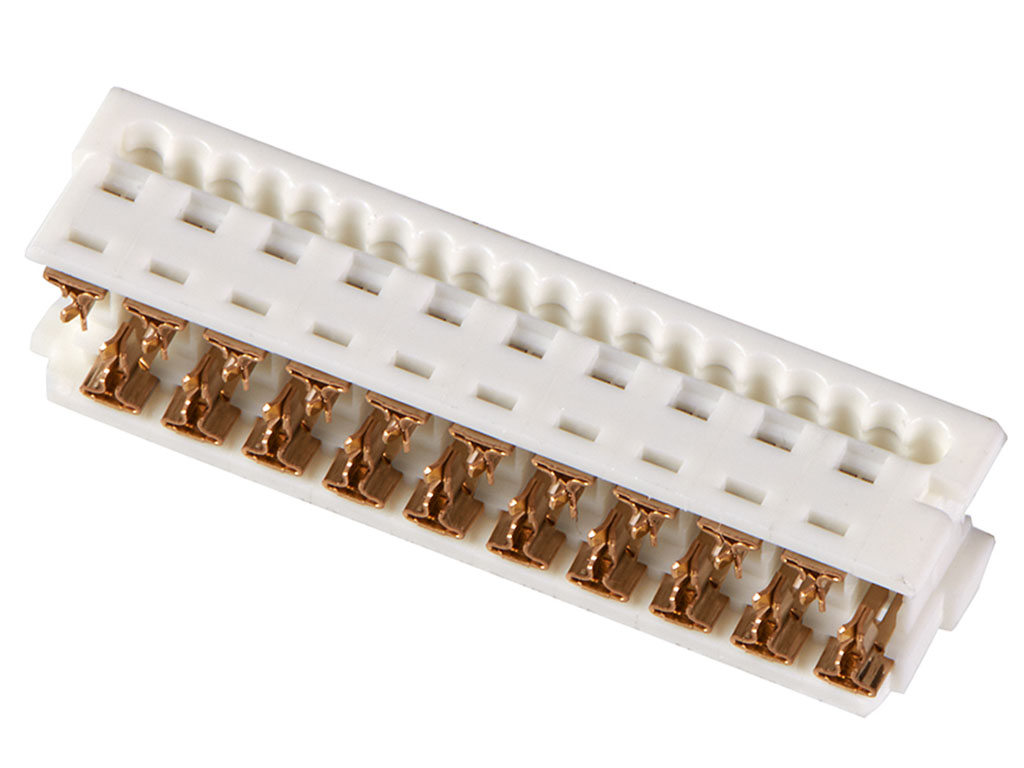

Picoflex PF-50, Low Profile, IDT Receptacle, 20 Circuits, White, Gold (Au) Plated, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90327-3320,
0903273320 |
Where to Buy
Prices starting from US$3.10
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$6.06
|
1,772
in stock
|
Buy Now |
|
Conrad
from US$3.10
|
1,121
in stock
|
Buy Now |
|
Farnell
from US$5.66
|
1,010
in stock
|
Buy Now |
|
Newark Electronics
from US$5.70
|
898
in stock
|
Buy Now |
|
element14
from US$4.48
|
898
in stock
|
Buy Now |
|
EME
from US$4.09
|
210
in stock
|
Buy Now |
|
TME
from US$4.43
|
25
in stock
|
Buy Now |
|
Offical Electronic
-
|
10
in stock
|
Buy Now |
|
Heilind Americas
from US$3.84
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.60
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | White |
| Durability Mating Cycles Max | 100 |
| Entry Angle | Vertical |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Polyester |
| Net Weight | 1.180/g |
| Number Of Rows | 2 |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | IDT or Pierce |
| Wire Cable Type | Ribbon Cable |
| Wire Insulation Diameter | 1.00mm max. |
| Wire Size Awg | 26, 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 90327-3320 IDC Connector | RS |
| Molex Buchsenleiste (Standard) Polzahl Gesamt 20 903273320 1 St. Bulk | Conrad |
| IDC CONN, RCPT, 20POS, 2ROW, 1.27MM | Farnell |
| Idc Conn, Rcpt, 20Pos, 2Row, 1.27Mm Rohs Compliant: Yes |Molex 90327-3320 | Newark Electronics |
| Connector: wire-board | TME |
| 1.27MM PF CONN LOPRO IDT WHT 76AU 20CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 903273320?
Additional datasheets, footprints and schematics for 903273320 are listed on our Part Details page. You can also find images and similar parts to 903273320 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 903273320 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 903273320 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 903273320 fall under?
The 903273320 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 903273320 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 903273320 you can contact the distributor directly for product support, shipping queries etc.
Is the 903273320 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 903273320 have stock available?
Authorised distributors including RS, Conrad, Farnell, Newark Electronics and element14 have stock available or on a lead time for 903273320.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 903273320 often in real-time on the comparison pages.
What if I can't find stock of 903273320?
You can fill out our help required form which you can use to request a quote for 903273320 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
