905841308 Picoflex by Molex

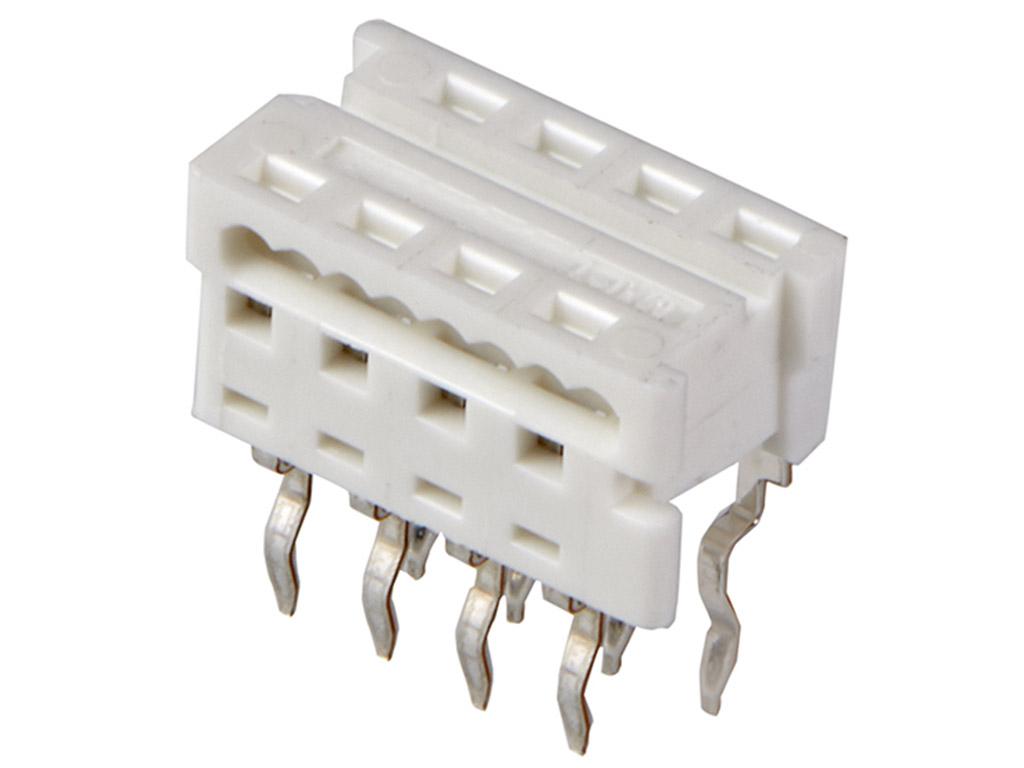

1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-in, 8 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
90584-1308,
0905841308 |
Where to Buy
Prices starting from US$0.36
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$0.48
|
66
in stock
|
Buy Now |
|
|
RS Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
element14
from US$0.36
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.64
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
0
in stock
|
Buy Now |
|
EME
from US$0.36
|
0
in stock
|
Buy Now |
|
Heilind Americas
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Entry Angle | Right Angle |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.563/g |
| Number Of Rows | 2 |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 2.032µm |
| Polarized To Mating Part | N/A |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Kinked Pin |
| Wire Cable Type | Ribbon Cable |
| Wire Insulation Diameter | 1.00mm max. |
| Wire Size Awg | 26, 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 90584-1308 IDC Connector | RS |
| 1.27MM PF LOPRO IDT B-IN TUBE WHT 8CKT | RS Americas |
| BOARD IN CONNECTOR, 8POS, 2ROW, 1.27MM | element14 |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 1.27 mm 905841308 1 St. Tube | Conrad |
| 1.27MM PF LOPRO IDT B-IN TUBE PICOFLEX BOARD-IN HD | Heilind Americas |
| Conn IDC Connector RCP 8 POS 2.54mm Solder ST Thru-Hole Tube | Avnet Abacus |
