923150425 Picoflex by Molex

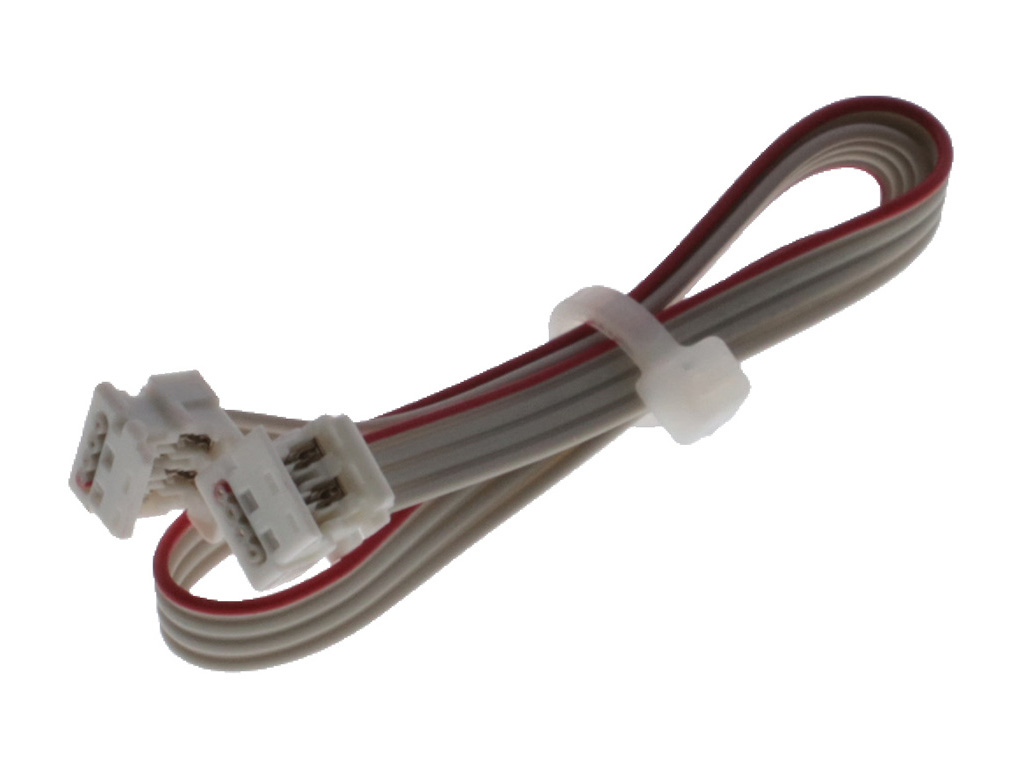

Picoflex PF-50 IDT-to-Picoflex PF-50 IDT Cable Assembly, 0.25m Length, Tin (Sn) Plating, 4 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
92315-0425,
0923150425 |
Where to Buy
Prices starting from US$0.47
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.82
|
4,658
in stock
|
Buy Now |
|
element14
from US$0.64
|
4,658
in stock
|
Buy Now |
|
Farnell
from US$0.73
|
4,658
in stock
|
Buy Now |
|
Conrad
from US$1.05
|
950
in stock
|
Buy Now |
|
TTI Europe
from US$0.57
|
900
in stock
|
Buy Now |
|
RS
from US$1.01
|
655
in stock
|
Buy Now |
|
TME
from US$0.73
|
291
in stock
|
Buy Now |
|
Avnet America
from US$0.56
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.86
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.2A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Cable Length | 0.25m |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.270/g |
| Number Of Rows | 2 |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 2.032µm |
| Singleended | No |
| Termination Interface Style | IDT or Pierce |
| Waterproof Dustproof | No |
| Wire Cable Type | PVC, Ribbon Cable |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ribbon Cable Assembly, Idc 1.27Mm, 4Contact, 250Mm | Newark Electronics |
| CABLE ASSY, PF50, RCPT-RCPT, 4POS, 250MM | element14 |
| Molex Buchsengehäuse-Kabel 923150425 1 St. Bulk | Conrad |
| PICOFLEX PF-50 IDT-TO-IDT 4CIR | TTI Europe |
| 4CC PICOFLEX 250MM LONG | RS |
| Ribbon cable with IDC connectors | TME |
| Cable Assembly Flat Ribbon 0.25m 28AWG 4 POS Picoflex to 4 POS Picoflex F-F IDT Bag | Avnet America |
| DOUBLE ENDED CABLE ASSEMBLY, IDT TO PICOFLEX, 0.25M L, TIN PLATED, 4 CIRCUITS | RS Americas |
