923150615 Picoflex by Molex

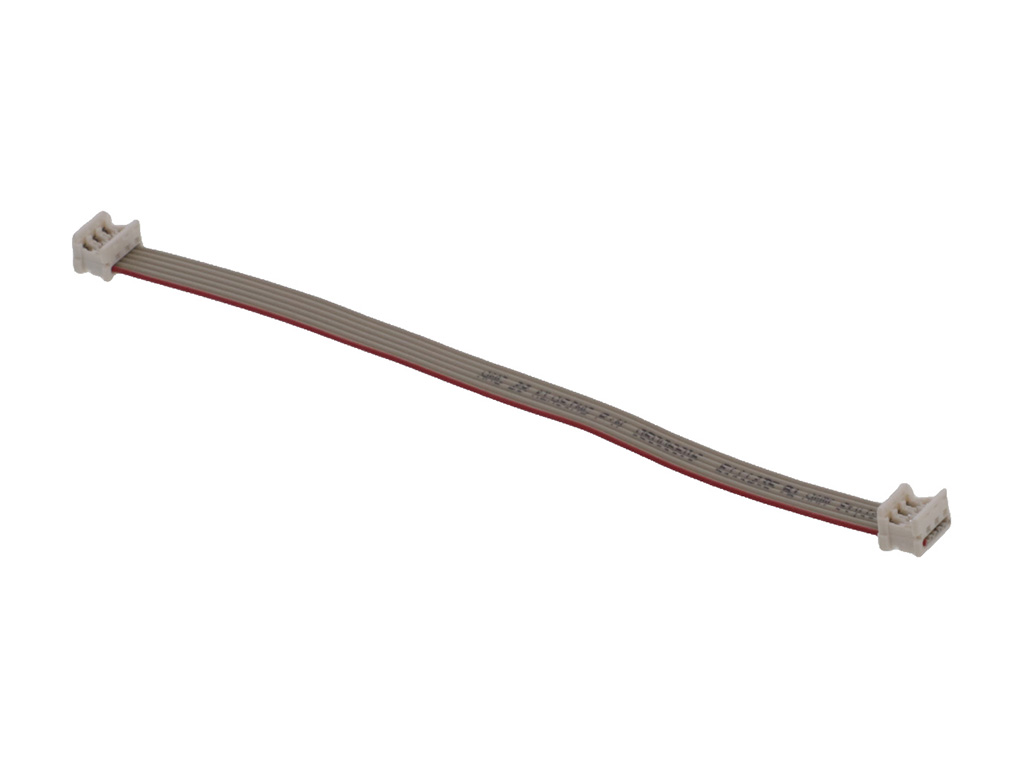

Picoflex PF-50 IDT-to-Picoflex PF-50 IDT Cable Assembly, 0.15m Length, Tin (Sn) Plating, 6 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
92315-0615,
0923150615 |
Where to Buy
Prices starting from US$0.20
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.27
|
2,061
in stock
|
Buy Now |
|
Farnell
from US$1.61
|
2,061
in stock
|
Buy Now |
|
RS
from US$1.03
|
906
in stock
|
Buy Now |
|
Conrad
from US$1.35
|
741
in stock
|
Buy Now |
|
TME
from US$1.00
|
86
in stock
|
Buy Now |
|
Newark Electronics
from US$0.20
|
1
in stock
|
Buy Now |
|
Avnet America
from US$0.82
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.17
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.73
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.66
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.2A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Cable Length | 0.15m |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 2.450/g |
| Number Of Rows | 2 |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 2.032µm |
| Singleended | No |
| Termination Interface Style | IDT or Pierce |
| Waterproof Dustproof | No |
| Wire Cable Type | PVC, Ribbon Cable |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, PF50, RCPT-RCPT, 6POS, 150MM | element14 |
| Picoflex IDT- IDT ribbon cable assembly | RS |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 6 Rastermaß: 1.27 mm 923150615 1 St. Bag | Conrad |
| Ribbon cable with IDC connectors | TME |
| Cable Assy, Pf50, Rcpt-Rcpt, 6Pos, 150Mm | Newark Electronics |
| RIBBON RIBBON CABLE ASSEMBLY 150MM 6, WAYS FEMALE TO FEMALE, IDT TO IDT | RS Americas |
