923151025 Picoflex by Molex

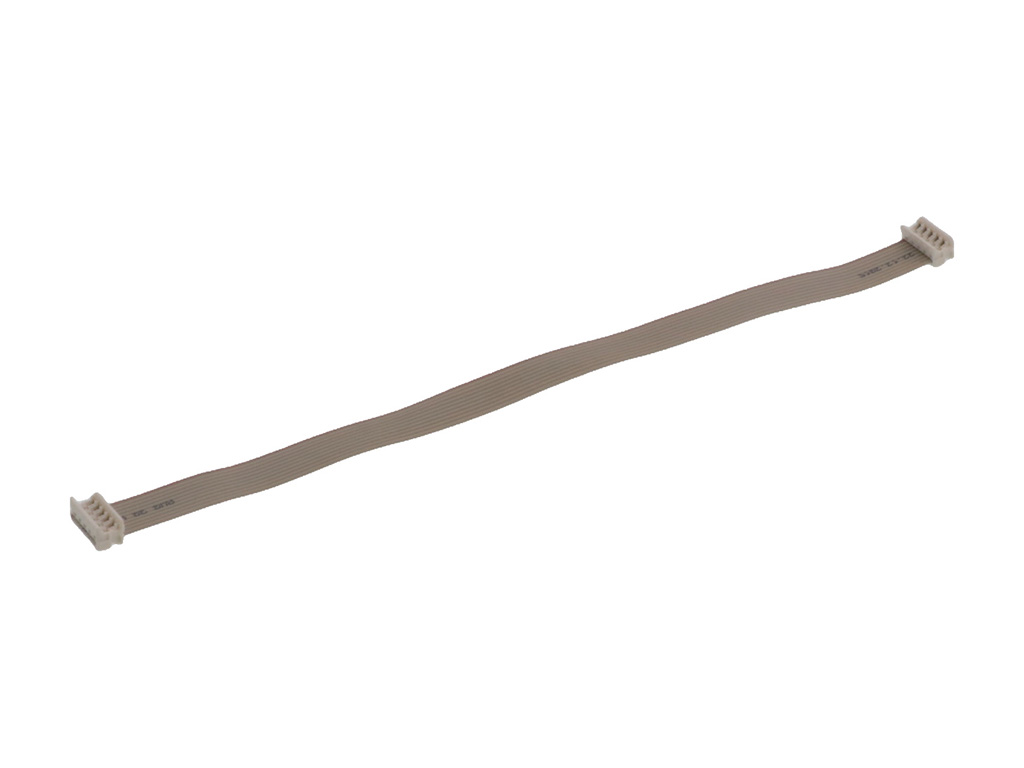

Picoflex PF-50 IDT-to-Picoflex PF-50 IDT Cable Assembly, 0.25m Length, Tin (Sn) Plating, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
92315-1025,
0923151025 |
Where to Buy
Prices starting from US$0.96
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.31
|
2,556
in stock
|
Buy Now |
|
Farnell
from US$3.58
|
2,301
in stock
|
Buy Now |
|
Newark Electronics
from US$3.58
|
1,047
in stock
|
Buy Now |
|
element14
from US$3.47
|
847
in stock
|
Buy Now |
|
RS
from US$2.17
|
396
in stock
|
Buy Now |
|
TME
from US$1.46
|
169
in stock
|
Buy Now |
|
Rutronik
from US$1.93
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.93
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.24
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.96
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Picoflex |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.2A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Cable Length | 0.25m |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Natural |
| Gender | Female-Female |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 5.490/g |
| Number Of Rows | 2 |
| Pitch Mating Interface | 1.27mm |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 2.032µm |
| Singleended | No |
| Termination Interface Style | IDT or Pierce |
| Waterproof Dustproof | No |
| Wire Cable Type | PVC, Ribbon Cable |
| Wire Size Awg | 28 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 92315-1025 1 St. Bag | Conrad |
| CABLE ASSY, RCPT-RCPT, 250MM | Farnell |
| Cable Assy, Pf50 Rcpt-Rcpt, 10Pos, 250Mm | Newark Electronics |
| CABLE ASSY, PF50 RCPT-RCPT, 10POS, 250MM | element14 |
| 10CC PICOFLEX 250MM LONG | RS |
| Ribbon cable with IDC connectors | TME |
| PicoFlex 10P Cable Ass. L=250mm | Rutronik |
