936273601 Magnetic Jack,MXMag,RJ45 by Molex

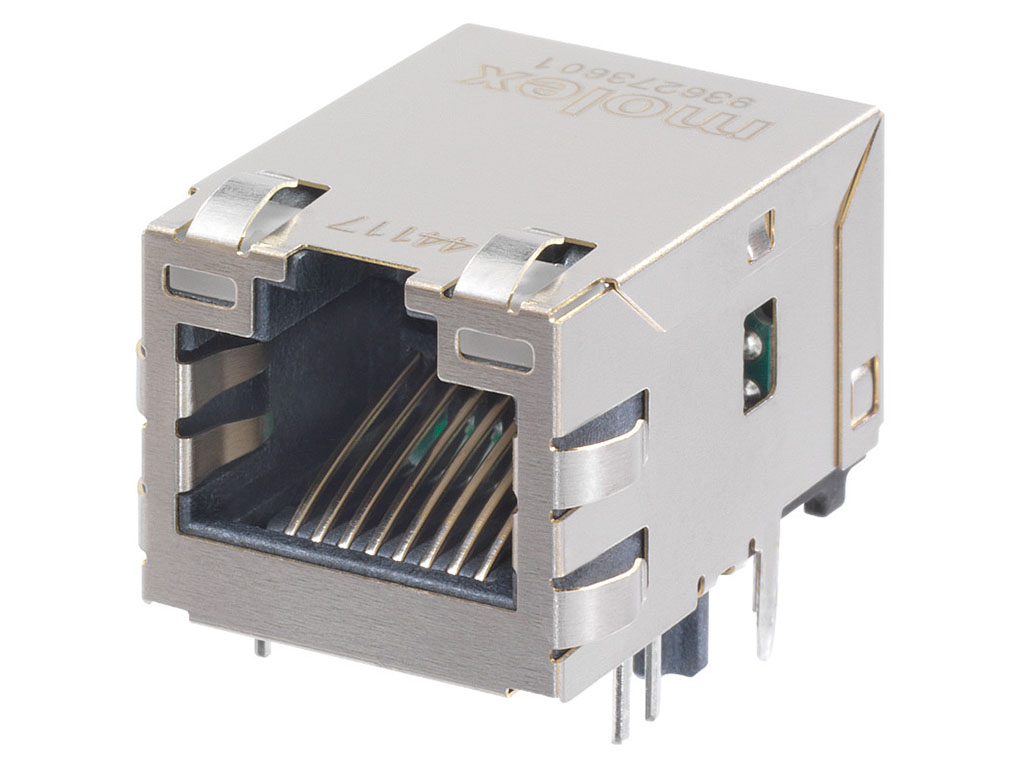

MXMag Gigabit Ethernet 8 Core Non-PoE Single-Port RJ45 Connector, 21.40mm Depth, 3.30mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green-Green LEDs, Standard Temperature, with 2kV Shield Connection, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
93627-3601,
0936273601 |
Where to Buy
Prices starting from US$6.35
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 21.40mm |
| Durability Mating Cycles Max | 2500 |
| Inverted Top Latch | Yes |
| Jack Height | 14.10mm |
| Keying To Mating Part | No |
| Light Pipes Leds | LEDs |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 6.300/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Plating Min Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
