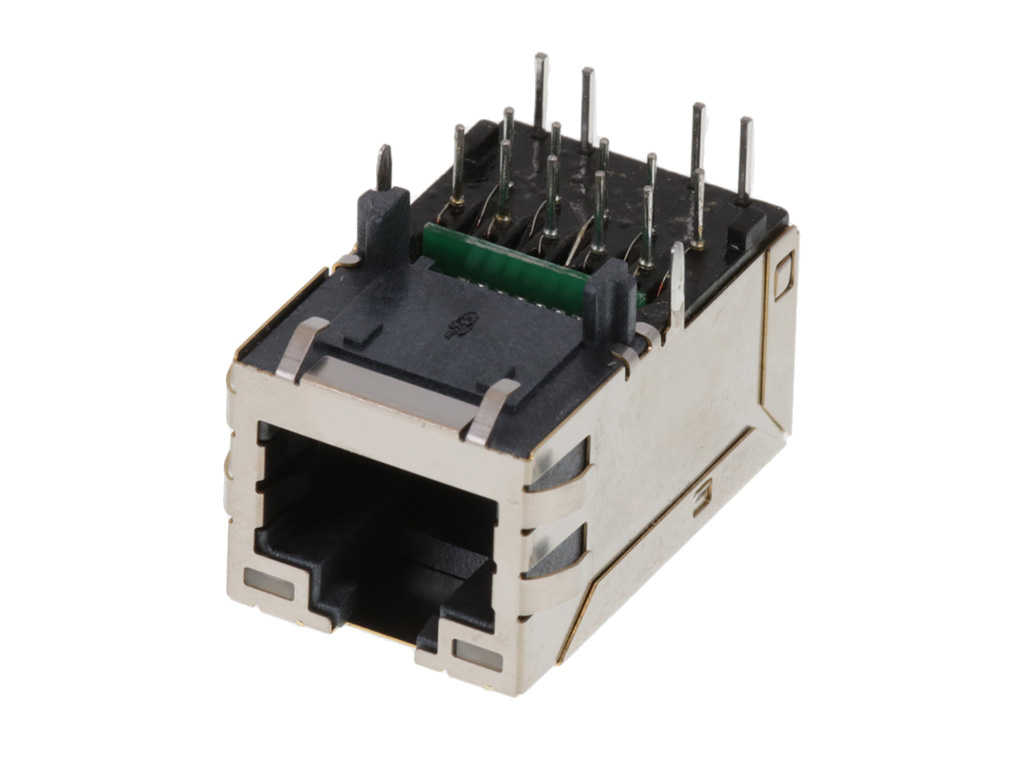

936283721 Magnetic Jack,MXMag,RJ45 by Molex
MXMag Gigabit Ethernet 8 Core Non-PoE Single-Port RJ45 Connector, 25.40mm Depth, 3.30mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green-Green LEDs, Standard Temperature, with 2kV Shield Connection, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
93628-3721,
0936283721 |
Where to Buy
Prices starting from US$4.35
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$9.74
|
51
in stock
|
Buy Now |
|
Newark Electronics
from US$9.21
|
0
in stock
|
Buy Now |
|
TME
from US$8.88
|
0
in stock
|
Buy Now |
|
element14
from US$7.32
|
0
in stock
|
Buy Now |
|
Conrad
from US$7.24
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.35
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.54
|
0
in stock
|
Buy Now |
|
Farnell
from US$7.26
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 25.40mm |
| Durability Mating Cycles Max | 2500 |
| Inverted Top Latch | Yes |
| Jack Height | 14.10mm |
| Keying To Mating Part | No |
| Light Pipes Leds | LEDs |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 7.693/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Plating Min Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 93628-3721 RJ45 Connector | RS |
| Rj45 Connector, Jack, 8P8C, 1Port, Th | Newark Electronics |
| Connector: RJ45 | TME |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, TH | element14 |
| Molex Molex 936283721 1" MX-MAG 936283721 Stecker 1 St. | Conrad |
| 8 CORE GIG 1 W/LEDS | Heilind Americas |
