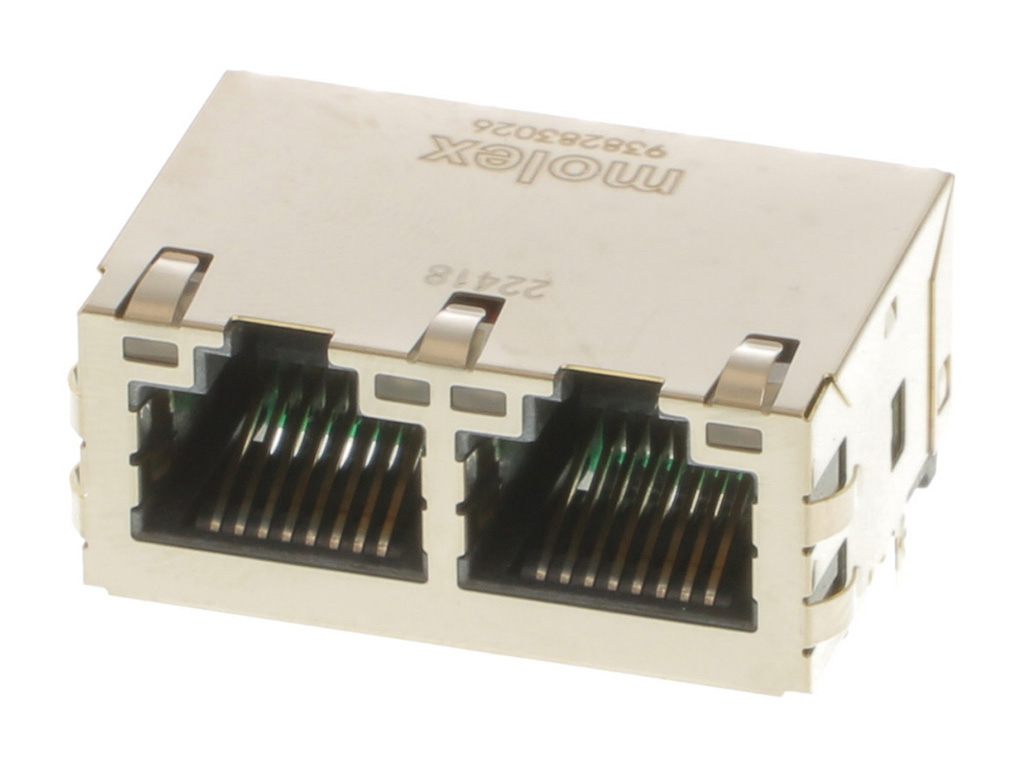

938263006 Magnetic Jack,MXMag,RJ45 by Molex
MXMag Gigabit Ethernet 8 Core Non-PoE 1x2 RJ45 Connector, 21.40mm Depth, 2.70mm Phy Pin Length, Right-Angle, Inverted Profile, with Shield Tabs, with Green-Yellow LEDs, Standard Temperature, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
93826-3006,
0938263006 |
Where to Buy
Prices starting from US$12.20
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$18.16
|
1,211
in stock
|
Buy Now |
|
Conrad
from US$16.20
|
1,211
in stock
|
Buy Now |
|
Farnell
from US$19.90
|
1,091
in stock
|
Buy Now |
|
Sager
from US$17.08
|
70
in stock
|
Buy Now |
|
RS
from US$20.03
|
0
in stock
|
Buy Now |
|
TME
from US$16.91
|
0
in stock
|
Buy Now |
|
element14
from US$16.67
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$16.81
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$12.20
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,MXMag,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Depth | 21.40mm |
| Durability Mating Cycles Max | 2500 |
| Inverted Top Latch | Yes |
| Jack Height | 14.10mm |
| Keying To Mating Part | No |
| Light Pipes Leds | LEDs |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 11.200/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | Spring Tabs |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.57mm |
| Plating Min Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | 0° to +70°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mxmag Gigabit Ethernet 8 Core Non-Poe Dual-Port R |Molex 93826-3006 | Newark Electronics |
| Molex Gigajack 1000 938263006 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, TH | Farnell |
| Modular Connectors / Ethernet Connectors MXMAG GIGIBIT 8 CORE RA | Sager |
| Molex 93826-3006 RJ45 Connector | RS |
| Connector: RJ45 | TME |
| RJ45 CONNECTOR, JACK, 2PORT, 8P8C, TH | element14 |
| MXMAG DUAL PORT 8 CORE GI LED | Heilind Americas |
