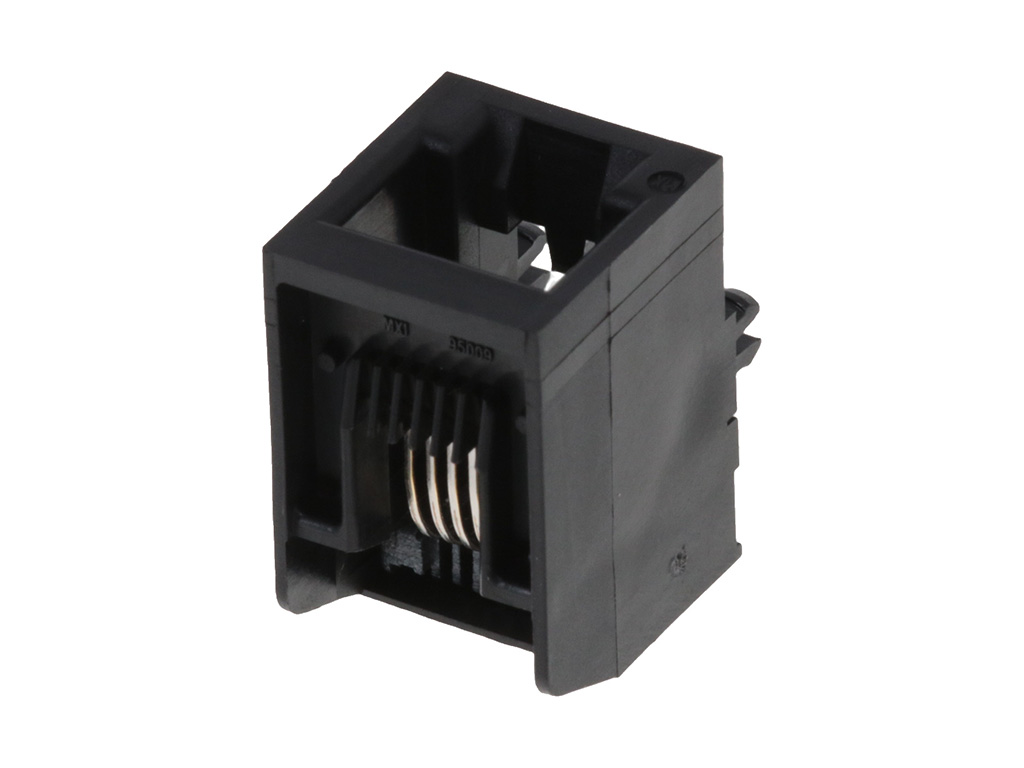

950097667 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Through Hole, 6/6
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95009-7667,
0950097667 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.95
|
4,972
in stock
|
Buy Now |
|
Farnell
from US$0.76
|
4,475
in stock
|
Buy Now |
|
Newark Electronics
from US$0.99
|
1,886
in stock
|
Buy Now |
|
element14
from US$0.67
|
1,886
in stock
|
Buy Now |
|
Heilind Americas
from US$0.72
|
12
in stock
|
Buy Now |
|
Avnet America
from US$0.74
|
0
in stock
|
Buy Now |
|
TME
from US$0.77
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.03
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.58
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 16.00mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.670/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | With Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex HIPRO RA MOD JACK 950097667 950097667 1 St. | Conrad |
| CONNECTORS | Farnell |
| Modular Connector, Jack, 6P6C, 1Port, Th | Newark Electronics |
| MODULAR CONNECTOR, JACK, 6P6C, 1PORT, TH | element14 |
| STD JACK RA 6/6 NO RIB | Heilind Americas |
| Modular Connector, Modular Jack, 1 x 1 (Port), 6P6C, Cat3, Through Hole Mount | Avnet America |
| Connector: RJ11 | TME |
| MDJCK 6/6 RA NO FLANGE PDNI | TTI Americas |
| STD JACK RA 6/6 NO RIB 95 | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 950097667?
Additional datasheets, footprints and schematics for 950097667 are listed on our Part Details page. You can also find images and similar parts to 950097667 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 950097667 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 950097667 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 950097667 fall under?
The 950097667 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 950097667 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 950097667 you can contact the distributor directly for product support, shipping queries etc.
Is the 950097667 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 950097667 have stock available?
Authorised distributors including Conrad, Farnell, Newark Electronics, element14 and Heilind Americas have stock available or on a lead time for 950097667.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 950097667 often in real-time on the comparison pages.
What if I can't find stock of 950097667?
You can fill out our help required form which you can use to request a quote for 950097667 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
