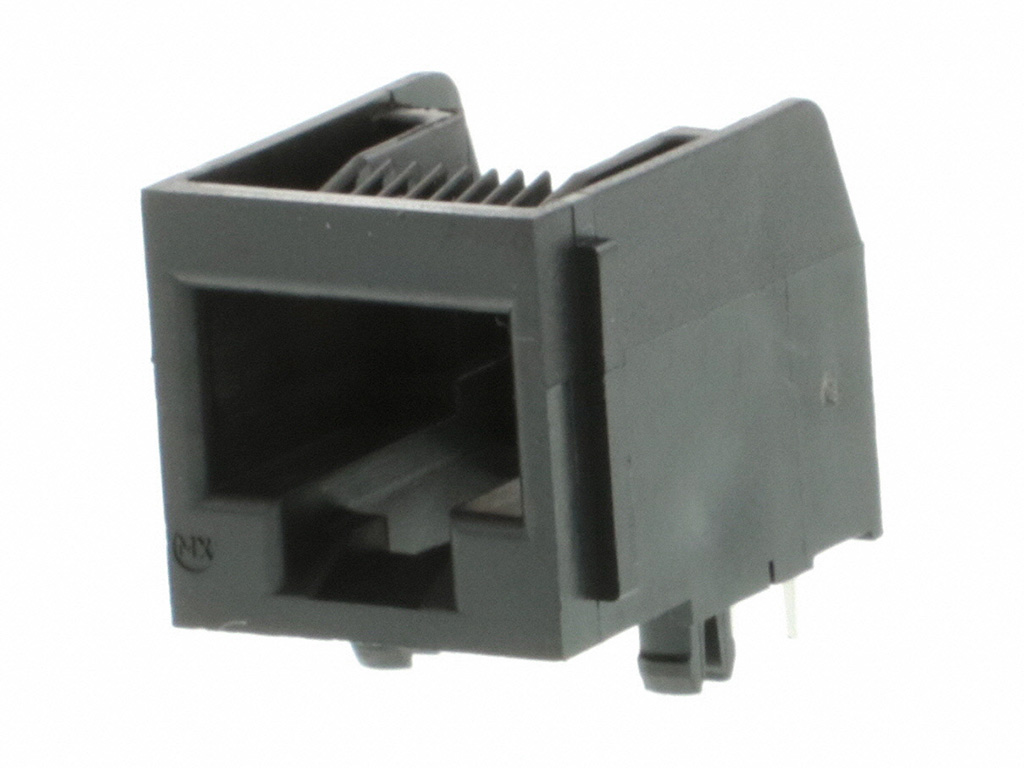

950097881 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Through Hole, 8/8, Panel Stops
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95009-7881,
0950097881 |
Where to Buy
Prices starting from US$0.68
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.37
|
2,266
in stock
|
Buy Now |
|
Farnell
from US$1.18
|
2,040
in stock
|
Buy Now |
|
RS
from US$1.32
|
1,120
in stock
|
Buy Now |
|
Newark Electronics
from US$1.10
|
593
in stock
|
Buy Now |
|
element14
from US$1.05
|
511
in stock
|
Buy Now |
|
TME
from US$0.89
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.83
|
0
in stock
|
Buy Now |
|
Sager
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.68
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.76
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 16.00mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.100/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | With Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 950097881 Buchse Schwarz 1 St. | Conrad |
| MODULAR AND ETHERNET CONNECTORS | Farnell |
| Molex 95009-7881 RJ45 Connector | RS |
| Modular Jack Right-Angle Through Hole 8/8 Panel S |Molex 95009-7881 | Newark Electronics |
| SOCKET, FCC-68, 8WAY, 8CONTACT | element14 |
| Connector: RJ45 | TME |
| 8/8 MOD JACK RT ANGLE STD PRO | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA | Sager |
| STD JACK RA 8/8 RIB | Heilind Americas |
| MDJCK 8/8 RA | TTI Asia |
| Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole Mount | Avnet Asia |
