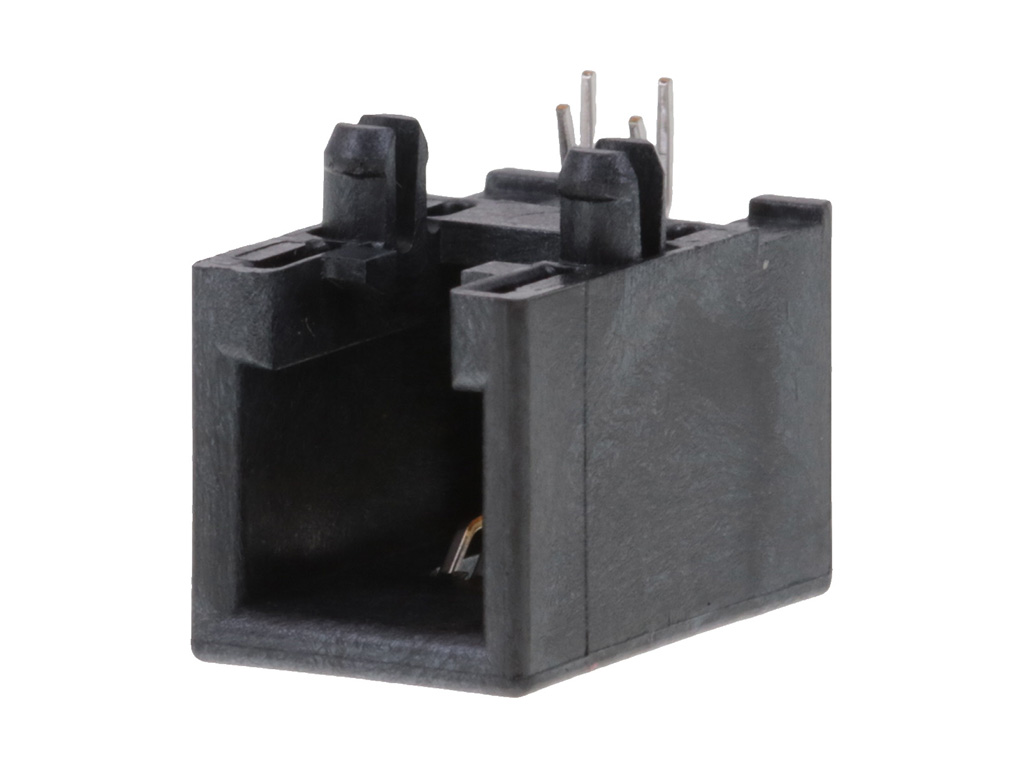

955012441 Modular Jack 4/4 by Molex
Modular Jack, Right-Angle, Through Hole , 4/4,Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-2441,
0955012441 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.39
|
62,748
in stock
|
Buy Now |
|
Heilind Americas
from US$0.38
|
4,615
in stock
|
Buy Now |
|
RS
from US$0.66
|
4,157
in stock
|
Buy Now |
|
Avnet Abacus
-
|
34,020
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
Rapid Electronics
from US$1.17
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.02
|
0
in stock
|
Buy Now |
|
Compona
from US$0.41
|
0
in stock
|
Buy Now |
|
EME
from US$0.54
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 4/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.830/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 4/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 4/4 Modular_Jack 90° LowProfile | Rutronik |
| RA LP TH JACK 4/4 | Heilind Americas |
| Molex 95501-2441 RJ22 Connector | RS |
| Conn Modular Jack Receptacle 4 POS 1.27mm Solder RA Through Hole 4 Terminal Single Port Tray | Avnet Abacus |
| Molex 955012441 Mod Jack Black Right-angle 4/4 Low Profile | Rapid Electronics |
| JACK MODULAR RIGHT ANGLE THROUGH HOLE RJ11 4 POS 4 CNTS GOLD | RS Americas |
| MOLEX 95501-2441 Socket Square RJ 4p THT | Compona |
