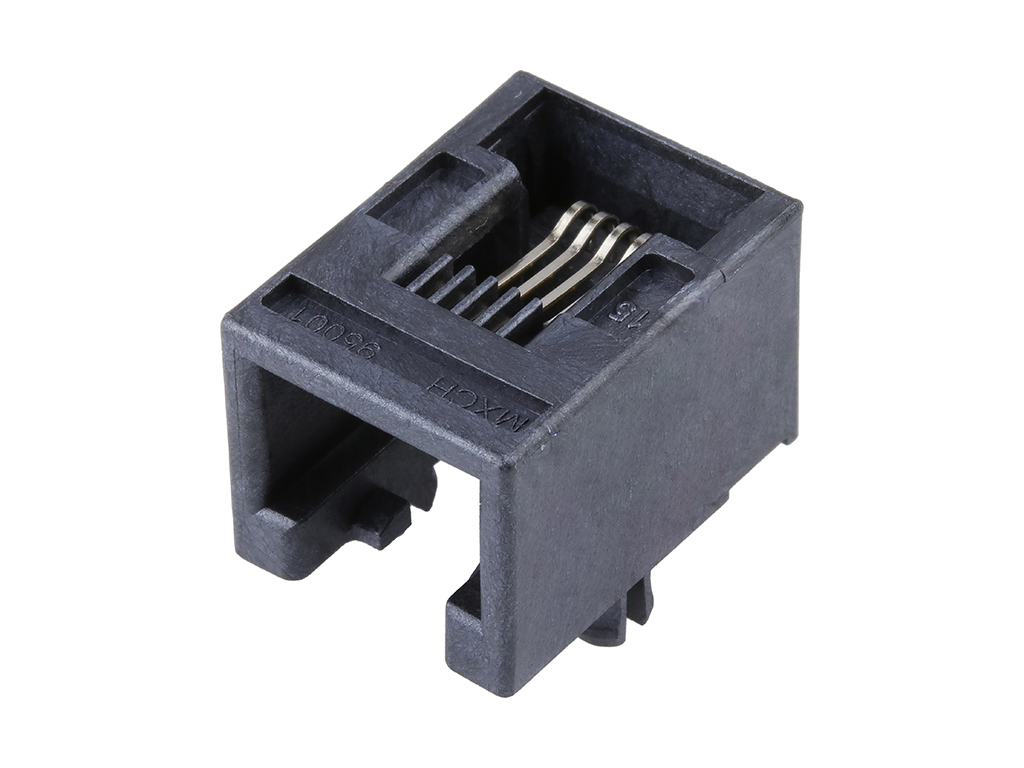

955012641 Modular Jack 6/4 by Molex
Modular Jack, Right-Angle, Through Hole, 6/4, Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-2641,
0955012641 |
Where to Buy
Prices starting from US$0.42
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.94
|
16,778
in stock
|
Buy Now |
|
Farnell
from US$0.80
|
15,372
in stock
|
Buy Now |
|
TTI Europe
from US$0.57
|
2,394
in stock
|
Buy Now |
|
TME
from US$0.57
|
1,080
in stock
|
Buy Now |
|
Newark Electronics
from US$0.92
|
802
in stock
|
Buy Now |
|
element14
from US$0.77
|
802
in stock
|
Buy Now |
|
RS
from US$0.81
|
474
in stock
|
Buy Now |
|
EME
from US$0.55
|
6
in stock
|
Buy Now |
|
Offical Electronic
-
|
32
in stock
|
Buy Now |
|
Avnet America
from US$0.76
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.92
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.70
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.69
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.42
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.70
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.130/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 955012641 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 6P4C, TH | Farnell |
| 6/4 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Connector: RJ11 | TME |
| Jack, 6/4 Low Profile | Newark Electronics |
| JACK, 6/4 LOW PROFILE | element14 |
| Molex 95501-2641 RJ22 Connector | RS |
| Modular Connector, Modular Jack, 1 x 1 (Port), 6P4C, Cat3, Through Hole Mount | Avnet America |
| JACK, MODULAR, RIGHT ANGLE, THROUGH HOLE, RJ11, 6 POS, 4 CNTS, GOLD | RS Americas |
| MDJCK 6/4 RA LOPRO | TTI Americas |
| RA LP TH JACK 6/4 | Heilind Americas |
