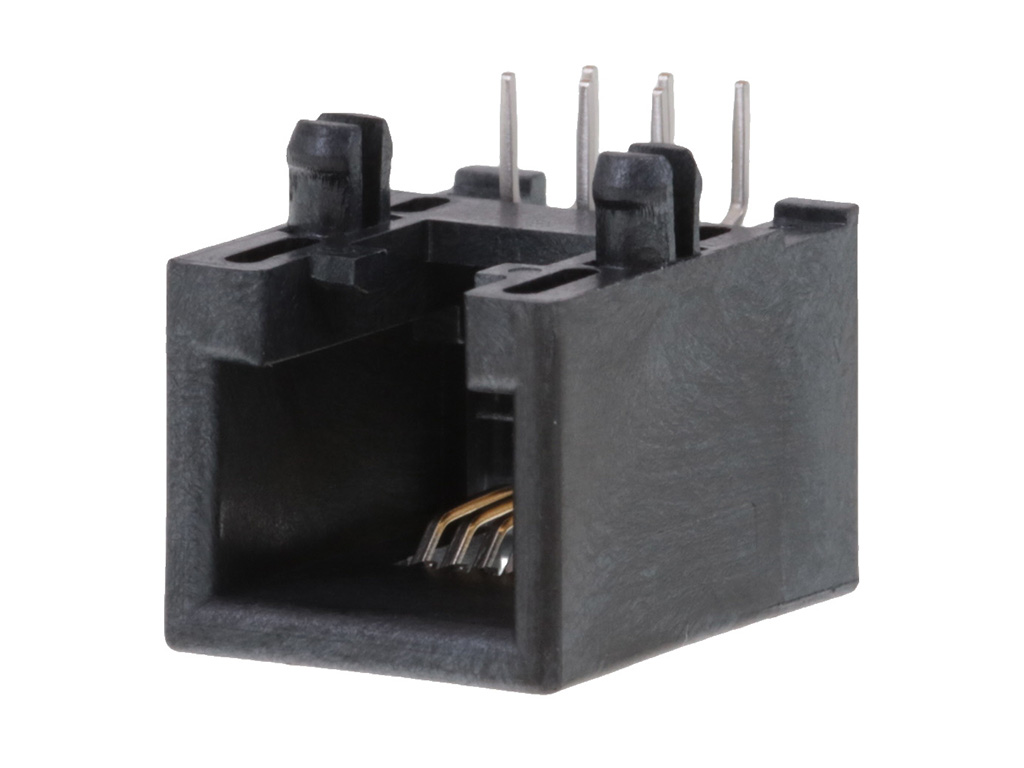

955012661 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Through Hole, 6/6,Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-2661,
0955012661 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.57
|
94,663
in stock
|
Buy Now |
|
Farnell
from US$0.65
|
61,100
in stock
|
Buy Now |
|
Newark Electronics
from US$0.68
|
56,621
in stock
|
Buy Now |
|
TTI Europe
from US$0.59
|
23,814
in stock
|
Buy Now |
|
RS
from US$0.51
|
8,271
in stock
|
Buy Now |
|
TME
from US$0.49
|
7,847
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.64
|
3,276
in stock
|
Buy Now |
|
Conrad
from US$1.19
|
879
in stock
|
Buy Now |
|
EME
from US$0.52
|
197
in stock
|
Buy Now |
|
Heilind Americas
from US$0.68
|
4
in stock
|
Buy Now |
|
Offical Electronic
-
|
7,998
in stock
|
Buy Now |
|
Rutronik
from US$0.38
|
0
in stock
|
Buy Now |
|
Compona
from US$0.39
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.42
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.000/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MODULAR, JACK, THT, R/A, RJ11, 6P6C | element14 |
| MOD CONN, R/A JACK, 6P6C, TH | Farnell |
| Modular Conn, R/A Jack, 6P6C, 1Port, Th | Newark Electronics |
| 6/6 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Molex 95501-2661 RJ12 Connector | RS |
| Connector: RJ12 | TME |
| MDJCK 6/6 RA LOPRO | TTI Asia |
| Molex Cat 3 Mod Jack/Plug 955012661 Buchse Schwarz 1 St. | Conrad |
| RA LP TH JACK 6/6 | Heilind Americas |
| 6/6 Modular_Jack 90° LowProfile High-T. | Rutronik |
| MOLEX 95501-2661 Socket Square RJ 6p THT | Compona |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 955012661?
Additional datasheets, footprints and schematics for 955012661 are listed on our Part Details page. You can also find images and similar parts to 955012661 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 955012661 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 955012661 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 955012661 fall under?
The 955012661 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 955012661 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 955012661 you can contact the distributor directly for product support, shipping queries etc.
Is the 955012661 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 955012661 have stock available?
Authorised distributors including element14, Farnell, Newark Electronics, TTI Europe and RS have stock available or on a lead time for 955012661.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 955012661 often in real-time on the comparison pages.
What if I can't find stock of 955012661?
You can fill out our help required form which you can use to request a quote for 955012661 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
