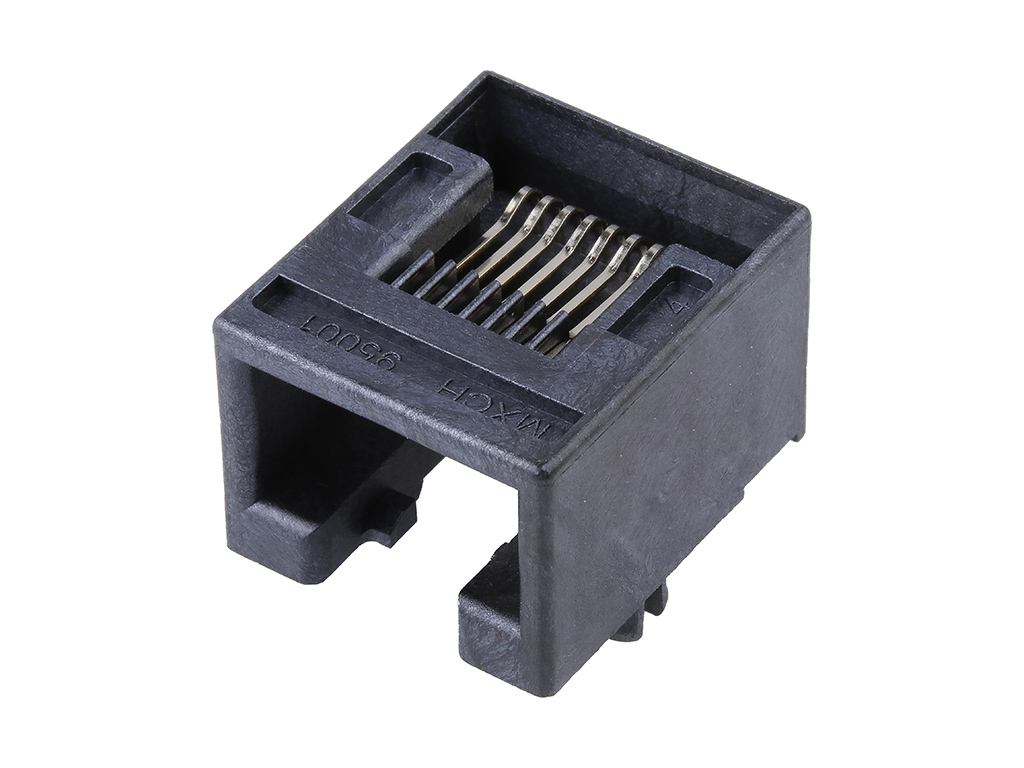

955012881 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Through Hole, 8/8, Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-2881,
0955012881 |
Where to Buy
Prices starting from US$0.45
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$0.79
|
15,967
in stock
|
Buy Now |
|
element14
from US$0.66
|
9,944
in stock
|
Buy Now |
|
Farnell
from US$0.73
|
9,944
in stock
|
Buy Now |
|
Heilind Americas
from US$0.47
|
6,268
in stock
|
Buy Now |
|
TME
from US$0.63
|
4,307
in stock
|
Buy Now |
|
CoreStaff
from US$0.63
|
2,676
in stock
|
Buy Now |
|
Conrad
from US$0.83
|
275
in stock
|
Buy Now |
|
EME
from US$0.60
|
200
in stock
|
Buy Now |
|
Newark Electronics
from US$0.82
|
122
in stock
|
Buy Now |
|
Offical Electronic
-
|
5,014
in stock
|
Buy Now |
|
Rutronik
from US$0.49
|
0
in stock
|
Buy Now |
|
Compona
from US$0.45
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.360/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 95501-2881 RJ45 Connector | RS |
| MODULAR, JACK, THT, R/A, RJ45, 8P8C | element14 |
| RA LP TH JACK 8/8 | Heilind Americas |
| Connector: RJ45 | TME |
| Molex Cat 3 Mod Jack/Plug 955012881 Buchse Schwarz 1 St. | Conrad |
| Rj45 Conn, Jack, 8P8C, 1Port, Cat3 | Newark Electronics |
| RJ45 Modular_Jack 90° LowProfile High-T. | Rutronik |
| MOLEX 95501-2881 Socket Square RJ 8p THT | Compona |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| MDJCK 8/8 RA LOPRO | TTI Asia |
