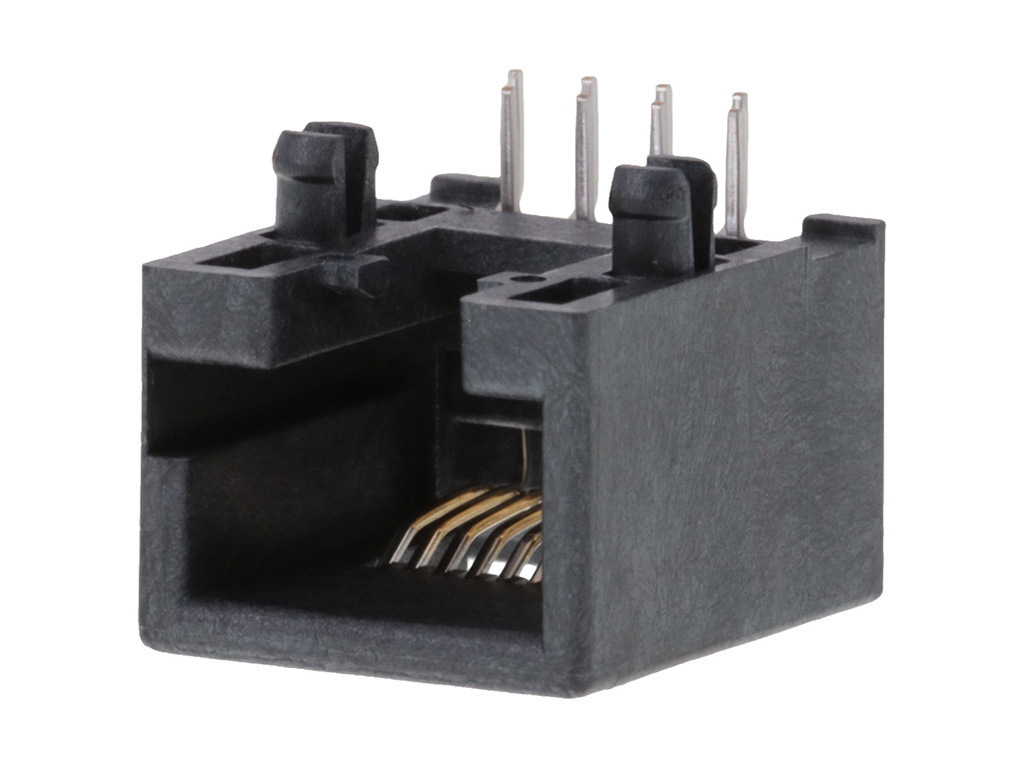

955012882 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Through Hole, 8/8, Keyed, Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-2882,
0955012882 |
Where to Buy
Prices starting from US$0.46
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.52
|
13,459
in stock
|
Buy Now |
|
Farnell
from US$0.75
|
12,222
in stock
|
Buy Now |
|
Newark Electronics
from US$0.96
|
982
in stock
|
Buy Now |
|
element14
from US$0.67
|
982
in stock
|
Buy Now |
|
Rutronik
from US$0.54
|
0
in stock
|
Buy Now |
|
RS
from US$0.76
|
0
in stock
|
Buy Now |
|
Compona
from US$0.51
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.73
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.60
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.46
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Keying To Mating Part | Yes |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.200/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: RJ45 | TME |
| MODULAR AND ETHERNET CONNECTORS MODULAR | Farnell |
| Rj45 Connector, Jack, 8P8C, 1Port, Cat3 | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, CAT3 | element14 |
| RJ45 Modular_Jack 90° LowProfile KEY | Rutronik |
| Molex 95501-2882 Connector | RS |
| MOLEX 95501-2882 Socket Square RJ 8p THT Keyed | Compona |
| MODULAR JACK, RIGHT-ANGLE | TTI Europe |
| RA LP TH JACK 8/8 KEYED | Heilind Americas |
