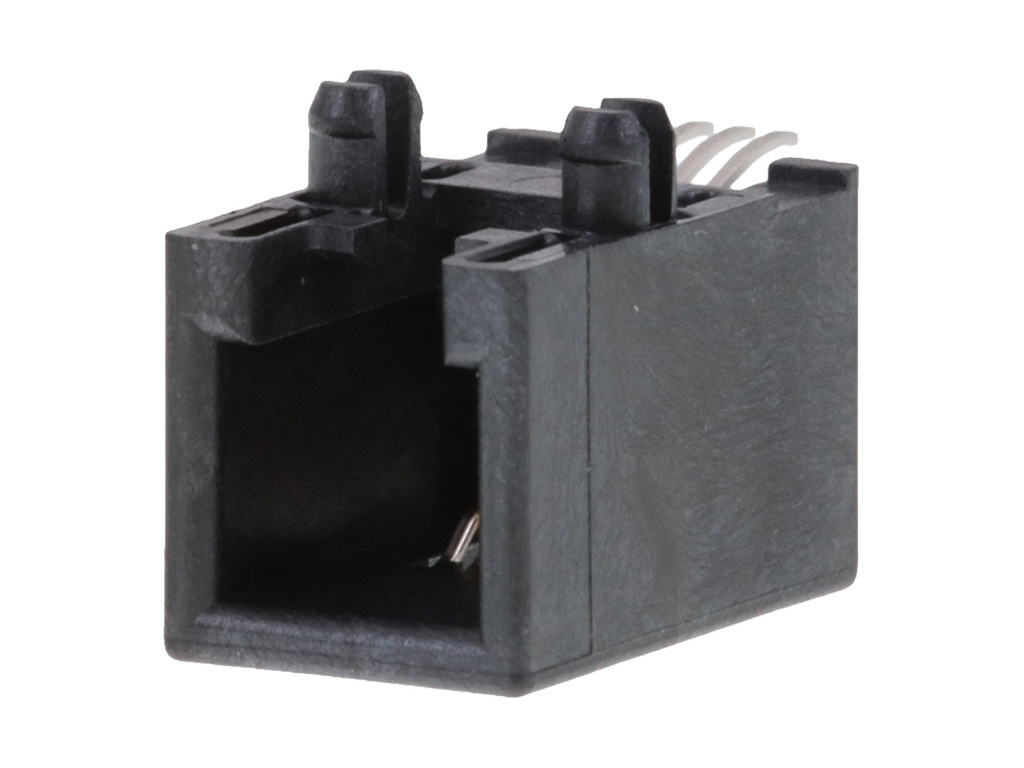

955016449 Modular Jack 4/4 by Molex
Modular Jack, Right-Angle, Surface Mount, 4/4, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-6449,
0955016449 |
Where to Buy
Prices starting from US$0.38
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.08
|
6,182
in stock
|
Buy Now |
|
Conrad
from US$1.31
|
3,095
in stock
|
Buy Now |
|
Farnell
from US$1.02
|
2,787
in stock
|
Buy Now |
|
TTI Americas
from US$0.94
|
2,352
in stock
|
Buy Now |
|
TME
from US$0.79
|
113
in stock
|
Buy Now |
|
RS
from US$0.80
|
15
in stock
|
Buy Now |
|
Avnet Abacus
-
|
16,905
in stock
|
Buy Now |
|
Avnet America
from US$0.54
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.38
|
0
in stock
|
Buy Now |
|
element14
from US$0.95
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.74
|
0
in stock
|
Buy Now |
|
Sager
from US$0.66
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.53
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.55
|
0
in stock
|
Buy Now |
|
EME
from US$0.71
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 4/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.830/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 4/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Modular Jack Right-Angle Surface Mount 4/4 Low Pr Rohs Compliant: Yes |Molex 95501-6449 | Newark Electronics |
| Molex Cat 3 Mod Jack/Plug 955016449 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A JACK, 4P4C, SMT | Farnell |
| MDJCK 4/4 RA LOPRO SMT | TTI Americas |
| Connector: RJ11 | TME |
| Molex 95501-6449 RJ11 Connector | RS |
| Modular Connector, Modular Jack, 1 x 1 (Port), 4P4C, Cat3, Surface Mount | Avnet Abacus |
| CAT3 4P4C RIGHT ANGLE CABLE MOUNT UNSHIELDED RJ22 MODULAR JACK CONNECTOR | RS Americas |
| JACK, RJ11, LP, 4/4 | element14 |
| MODULAR JACKS LOW PROFILE SM | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 4/4 RA LOPRO SMT | Sager |
| RA LP SMT JACK 4/4 | Heilind Americas |
