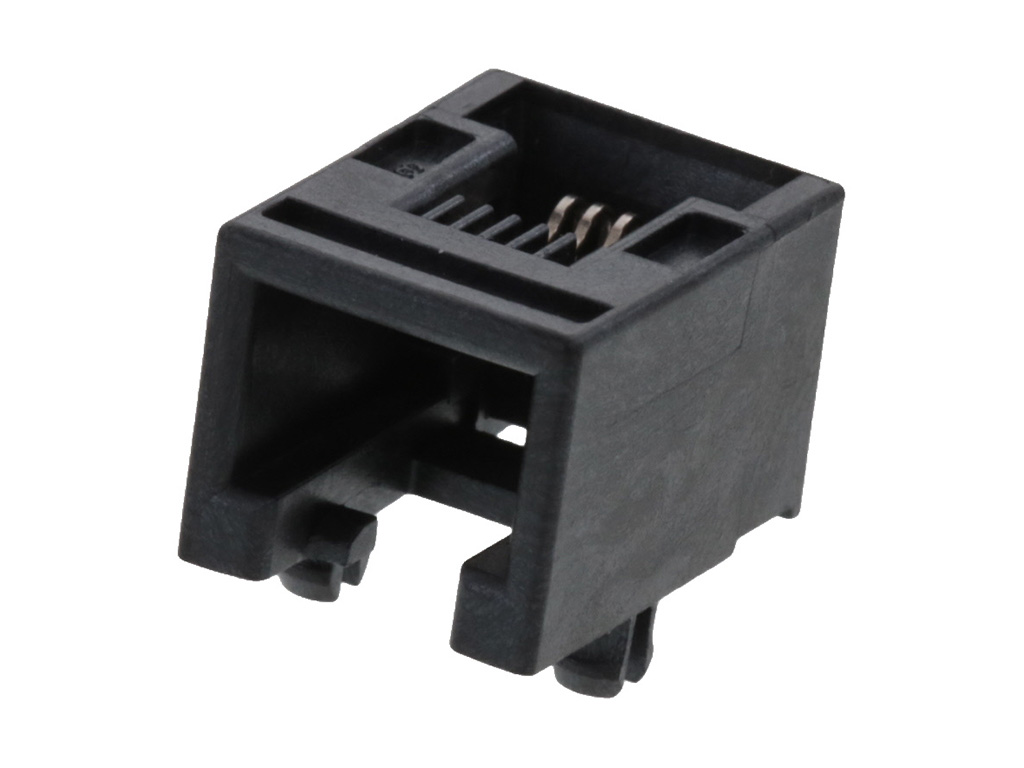

955016649 Modular Jack 6/4 by Molex
Modular Jack, Right-Angle, Surface Mount, 6/4, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-6649,
0955016649 |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.10
|
5,076
in stock
|
Buy Now |
|
TME
from US$0.69
|
4,606
in stock
|
Buy Now |
|
Farnell
from US$0.79
|
4,606
in stock
|
Buy Now |
|
RS
from US$1.06
|
620
in stock
|
Buy Now |
|
element14
from US$0.72
|
478
in stock
|
Buy Now |
|
Newark Electronics
from US$0.62
|
453
in stock
|
Buy Now |
|
Rutronik
from US$0.74
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.56
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.86
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.65
|
0
in stock
|
Buy Now |
|
Sager
from US$0.55
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.57
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.75
|
0
in stock
|
Buy Now |
|
EME
from US$0.73
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.130/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Molex 955016649 R/A LO PRO MOD JACK 955016649 Buchse Polzahl Sensoren 6P4C 1 St. | Conrad |
| Connector: RJ11 | TME |
| MOD CONN, R/A JACK, 6P4C, SMT | Farnell |
| Molex 95501-6649 RJ11 Connector | RS |
| MODULAR CONN, JACK, 6P4C, 1PORT, CAT3 | element14 |
| Modular Conn/Ethernet Conn Rj11 Mod Jack 6/4 R/A Rohs Compliant: Yes |Molex 95501-6649 | Newark Electronics |
| 6/4 Modular_Jack 90° LowProfile High-T. | Rutronik |
| 6P4C RIGHT ANGLE SURFACE MOUNT UTP RJ11 MODULAR JACK CONNECTOR 95501 95501 | RS Americas |
| MDJCK 6/4 RA LOPRO SMT | TTI Americas |
| Modular Connectors / Ethernet Connectors MDJCK 6/4 RA LOPRO SMT | Sager |
| RA LP SMT JACK 6/4 | Heilind Americas |
