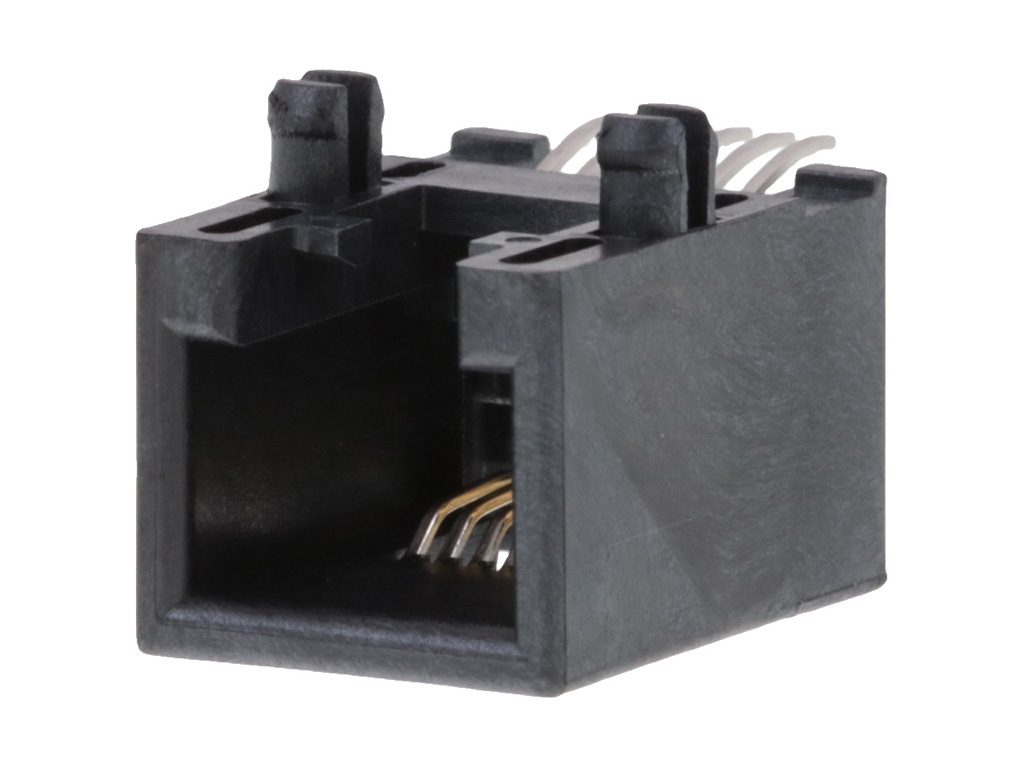

955016669 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Surface Mount, 6/6, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-6669,
0955016669 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.77
|
17,472
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.61
|
15,876
in stock
|
Buy Now |
|
Newark Electronics
from US$0.98
|
5,434
in stock
|
Buy Now |
|
element14
from US$0.84
|
5,434
in stock
|
Buy Now |
|
Farnell
from US$0.93
|
5,434
in stock
|
Buy Now |
|
Conrad
from US$1.05
|
4,830
in stock
|
Buy Now |
|
RS
from US$1.07
|
405
in stock
|
Buy Now |
|
Heilind Americas
from US$0.94
|
24
in stock
|
Buy Now |
|
TME
from US$0.71
|
5
in stock
|
Buy Now |
|
Rutronik
from US$0.60
|
0
in stock
|
Buy Now |
|
Compona
from US$0.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
EME
from US$0.69
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.090/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 6/6 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| RA LP SMT JACK 6/6 | TTI Asia |
| Cat3 Rj12, Jack, 6Way, 1 Port | Newark Electronics |
| CAT3 RJ12, JACK, 6WAY, 1 PORT | element14 |
| Molex Cat 3 Mod Jack/Plug 955016669 Buchse Schwarz 1 St. | Conrad |
| Molex 95501-6669 RJ12 Connector | RS |
| Connector: RJ12 | TME |
| 6/6 Modular_Jack 90° LowProfile High-T. | Rutronik |
| MOLEX 95501-6669 Socket Square RJ 6p SMT | Compona |
