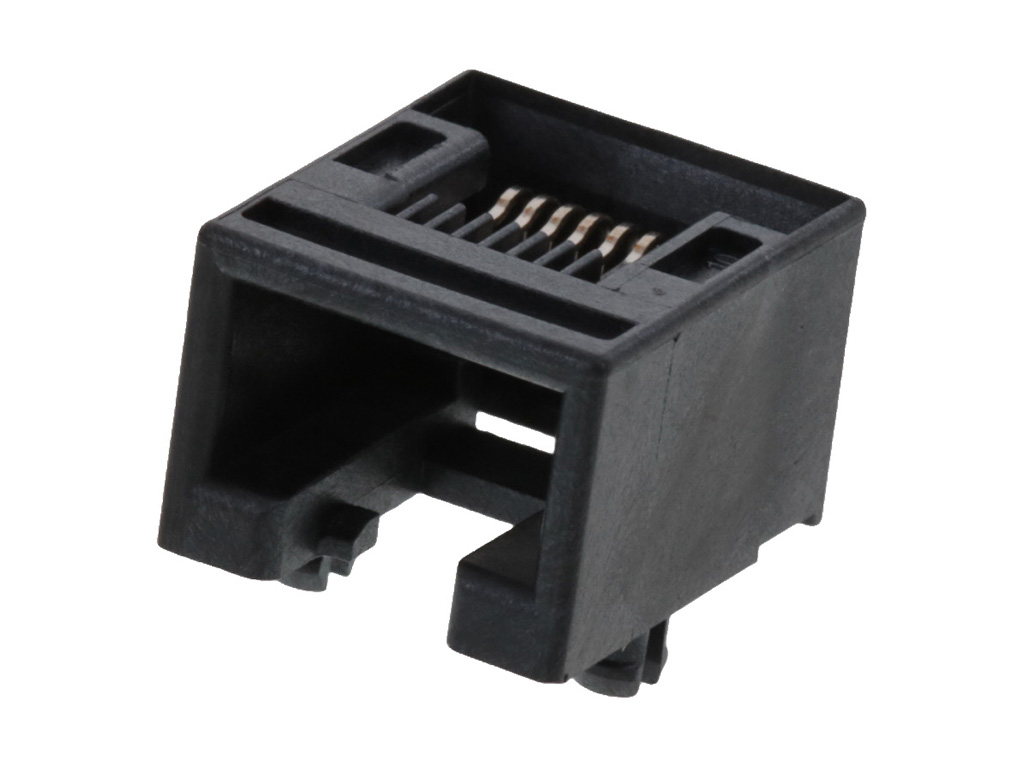

955016889 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Surface Mount, 8/8, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95501-6889,
0955016889 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.09
|
3,096
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.97
|
1,404
in stock
|
Buy Now |
|
RS
from US$1.01
|
695
in stock
|
Buy Now |
|
TME
from US$0.80
|
587
in stock
|
Buy Now |
|
element14
from US$0.95
|
287
in stock
|
Buy Now |
|
Farnell
from US$0.99
|
287
in stock
|
Buy Now |
|
Newark Electronics
from US$0.91
|
98
in stock
|
Buy Now |
|
Avnet America
from US$0.53
|
98
in stock
|
Buy Now |
|
|
RS Americas
from US$0.44
|
3
in stock
|
Buy Now |
|
Avnet Abacus
-
|
6,768
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
2,268
in stock
|
Buy Now |
|
Rutronik
from US$0.77
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.23
|
0
in stock
|
Buy Now |
|
Sager
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.62
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.77
|
0
in stock
|
Buy Now |
|
EME
from US$0.78
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.360/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| MDJCK 8/8 RA LOPRO | TTI Americas |
| Molex 95501-6889 RJ45 Connector | RS |
| Connector: RJ45 | TME |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, SMD | element14 |
| Ra Lp Smt Jack 8/8 Rohs Compliant: Yes |Molex 95501-6889 | Newark Electronics |
| RJ45, CAT3 RJ45 CONNECTOR SOCKET, UNSHIELDED, RIGHT ANGLE, SURFACE MOUNT 95501 | RS Americas |
| RJ45 Modular_Jack 90° LowProfile | Rutronik |
| Molex Cat 3 Mod Jack/Plug 955016889 Buchse Schwarz 1 St. | Conrad |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA LOPRO | Sager |
| RA LP SMT JACK 8/8 | Heilind Americas |
