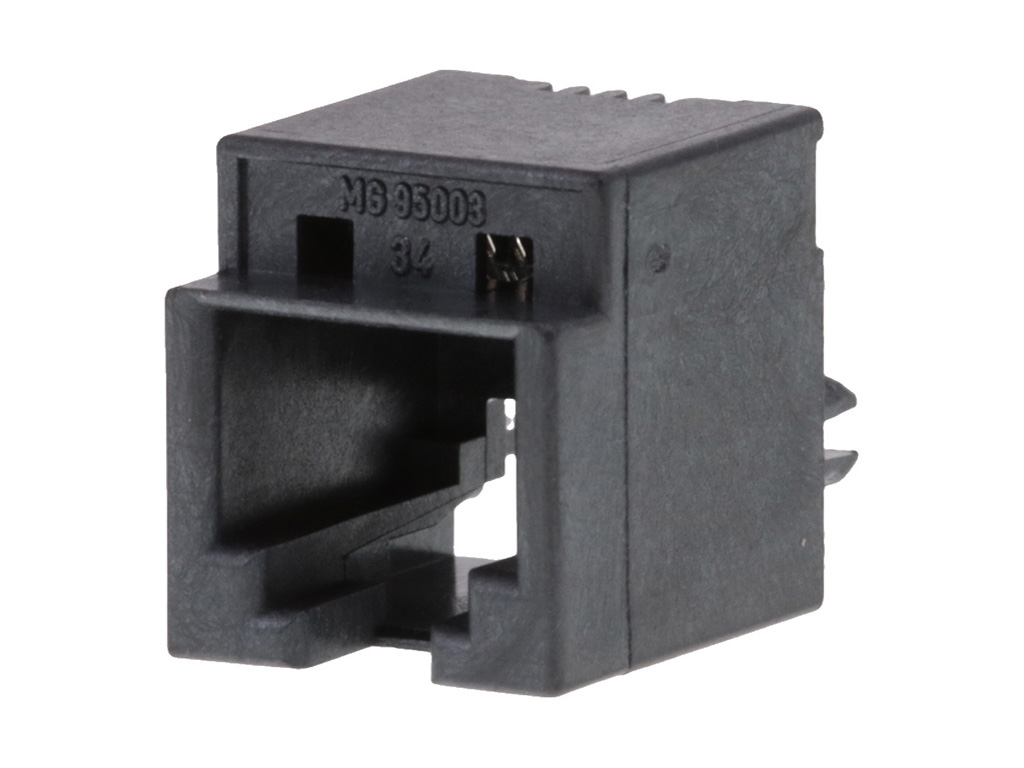

955032641 Modular Jack 6/4 by Molex
Modular Jack, Vertical, Top Entry, Through Hole, 6/4, No Key Version, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95503-2641,
0955032641 |
Where to Buy
Prices starting from US$0.61
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$0.76
|
2,856
in stock
|
Buy Now |
|
RS
from US$0.95
|
292
in stock
|
Buy Now |
|
Conrad
from US$0.74
|
267
in stock
|
Buy Now |
|
Farnell
from US$0.83
|
241
in stock
|
Buy Now |
|
Offical Electronic
-
|
505
in stock
|
Buy Now |
|
Newark Electronics
from US$1.04
|
0
in stock
|
Buy Now |
|
TME
from US$0.91
|
0
in stock
|
Buy Now |
|
element14
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.63
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.61
|
0
in stock
|
Buy Now |
|
EME
from US$0.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/4 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.300/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/4 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 6/4 MOD JACK VERTICAL STD PRO | TTI Europe |
| Molex 95503-2641 RJ45 Connector | RS |
| Molex Molex 955032641 LOPRO T/E PC JACK 955032641 Buchse Polzahl Sensoren 6P4C 1 St. | Conrad |
| MOD CONN, JACK, 6P4C, TH | Farnell |
| Modular Conn, Jack, 6P4C, 1Port, Th | Newark Electronics |
| Connector: RJ45 | TME |
| MODULAR CONN, JACK, 6P4C, 1PORT, TH | element14 |
| 6/4 JACK THROUGH HOLE NO KEY ERSION | Heilind Americas |
