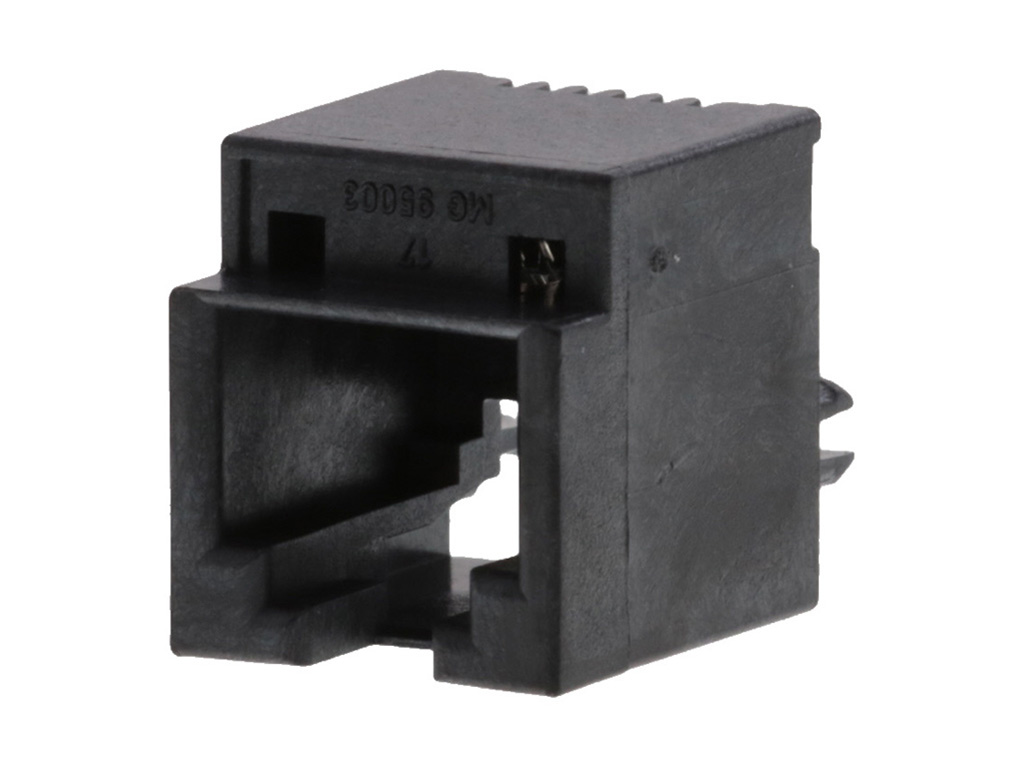

955032661 Modular Jack 6/6 by Molex
Modular Jack, Vertical, Top Entry, Through Hole,6/6, No Key Version, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95503-2661,
0955032661 |
Where to Buy
Prices starting from US$0.41
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$0.74
|
33,915
in stock
|
Buy Now |
|
TME
from US$0.83
|
31,194
in stock
|
Buy Now |
|
Sager
from US$0.46
|
15,783
in stock
|
Buy Now |
|
Avnet America
from US$0.45
|
8,134
in stock
|
Buy Now |
|
TTI Europe
from US$0.62
|
7,021
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.57
|
6,902
in stock
|
Buy Now |
|
Farnell
from US$0.74
|
3,673
in stock
|
Buy Now |
|
Heilind Americas
from US$0.41
|
2,650
in stock
|
Buy Now |
|
Conrad
from US$0.82
|
991
in stock
|
Buy Now |
|
RS
from US$1.19
|
909
in stock
|
Buy Now |
|
Newark Electronics
from US$0.74
|
470
in stock
|
Buy Now |
|
Offical Electronic
-
|
161
in stock
|
Buy Now |
|
|
RS Americas
from US$0.98
|
0
in stock
|
Buy Now |
|
Compona
from US$0.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.72
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.43
|
0
in stock
|
Buy Now |
|
EME
from US$0.84
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.300/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 6/6 Modular_Jack SMT ALL CUTOUT High-T. | Rutronik |
| Connector: RJ12 | TME |
| Modular Connectors / Ethernet Connectors MDJCK 6/6 VT TH | Sager |
| 6/6 MOD JACK VERTICAL STD PRO | TTI Europe |
| MDJCK 6/6 VT TH | TTI Americas |
| MODULAR, JACK, THT, RJ11, 6P6C | Farnell |
| 6/6 JACK THROUGH HOLE NO KEY ERSION | Heilind Americas |
| Molex LOPRO T/E PC JACK 955032661 955032661 1 St. | Conrad |
| Molex 95503-2661 RJ11 Connector | RS |
| Modular Conn, Jack, 6P6C, 1Port, Cat3 | Newark Electronics |
| 6 STRAIGHT THROUGH HOLE UNSHIELDED RJ11MODULAR JACK CONNECTOR 95503 2661 | RS Americas |
| MOLEX 95503-2661 Socket Square RJ 6p THT | Compona |
