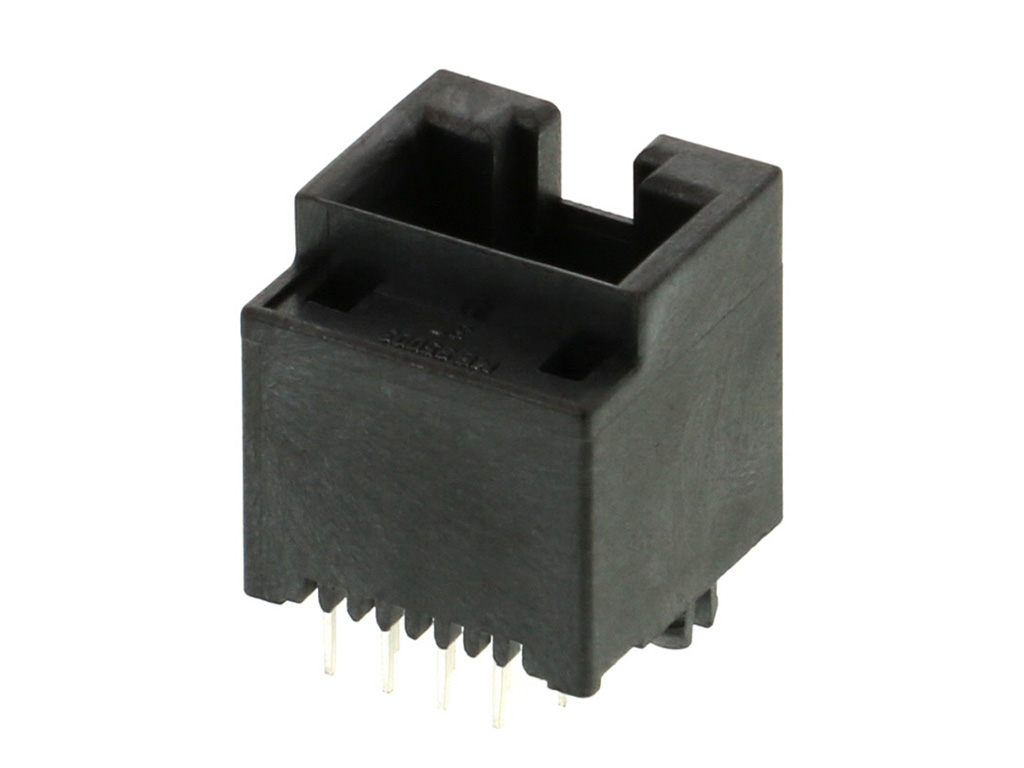

955032881 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Through Hole, 8/8, No Key Version, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95503-2881,
0955032881 |
Where to Buy
Prices starting from US$0.49
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.51
|
32,674
in stock
|
Buy Now |
|
Newark Electronics
from US$0.77
|
23,788
in stock
|
Buy Now |
|
Rutronik
from US$0.58
|
19,516
in stock
|
Buy Now |
|
Farnell
from US$0.92
|
9,764
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.66
|
9,386
in stock
|
Buy Now |
|
TTI Europe
from US$0.52
|
9,282
in stock
|
Buy Now |
|
RS
from US$1.41
|
4,186
in stock
|
Buy Now |
|
Conrad
from US$0.53
|
3,819
in stock
|
Buy Now |
|
TME
from US$0.58
|
3,368
in stock
|
Buy Now |
|
element14
from US$0.72
|
2,882
in stock
|
Buy Now |
|
EME
from US$0.64
|
169
in stock
|
Buy Now |
|
Offical Electronic
-
|
3,950
in stock
|
Buy Now |
|
Compona
from US$0.49
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.54
|
0
in stock
|
Buy Now |
|
Carlton-Bates
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.600/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 JACK THROUGH HOLE NO KEY ERSION | Heilind Americas |
| 8/8 Jack Through Hole No Key Version Rohs Compliant: Yes |Molex 95503-2881 | Newark Electronics |
| RJ45 Modular_Jack SMT ALL CUTOUT | Rutronik |
| MOD CONN, RJ45 JACK, 8P8C, TH | Farnell |
| 8/8 MOD JACK VERTICAL STD PRO | TTI Europe |
| Molex 95503-2881 RJ45 Connector | RS |
| Molex Cat 3 Mod Jack/Plug 955032881 Buchse Schwarz 1 St. | Conrad |
| Connector: RJ45 | TME |
| SOCKET, PCB, MODULAR, 8WAY | element14 |
| MOLEX 95503-2881 Socket Square RJ 8p THT | Compona |
| MDJCK 8/8 VT | TTI Asia |
| Jack, Modular | Carlton-Bates |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 955032881?
Additional datasheets, footprints and schematics for 955032881 are listed on our Part Details page. You can also find images and similar parts to 955032881 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 955032881 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 955032881 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 955032881 fall under?
The 955032881 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 955032881 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 955032881 you can contact the distributor directly for product support, shipping queries etc.
Is the 955032881 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 955032881 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, Rutronik, Farnell and Heilind Europe have stock available or on a lead time for 955032881.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 955032881 often in real-time on the comparison pages.
What if I can't find stock of 955032881?
You can fill out our help required form which you can use to request a quote for 955032881 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
