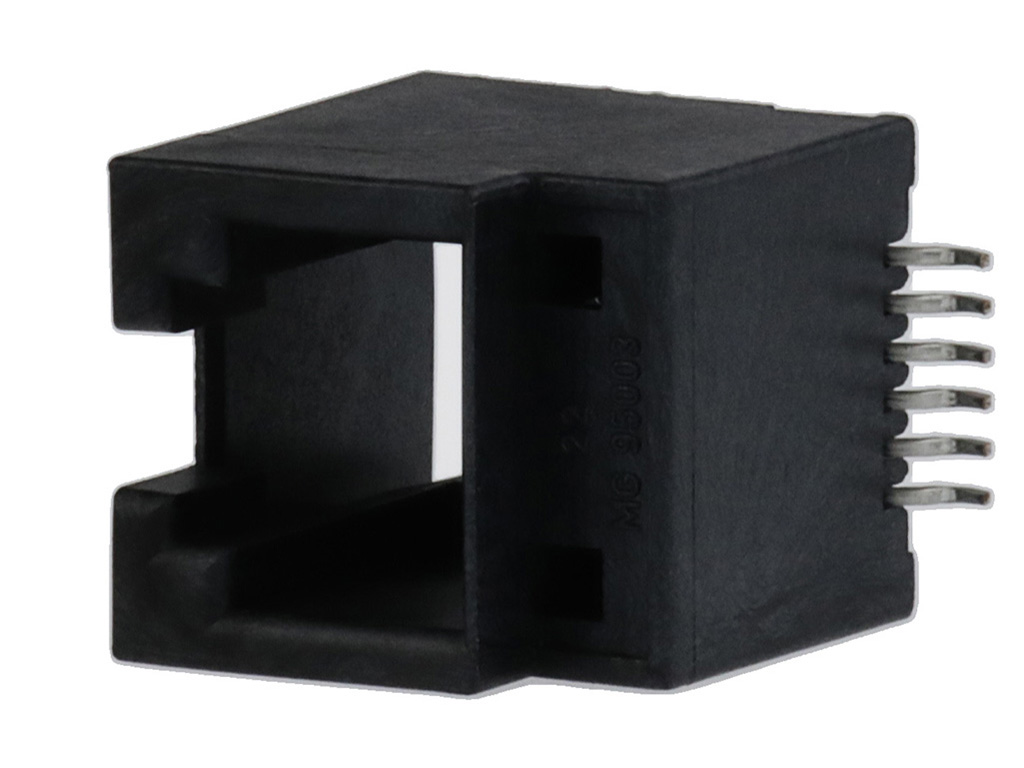

955036671 Modular Jack 6/6 by Molex
Modular Jack, Vertical, Top Entry, Surface Mount, 6/6, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95503-6671,
0955036671 |
Where to Buy
Prices starting from US$0.57
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.26
|
1,574
in stock
|
Buy Now |
|
Farnell
from US$0.89
|
1,435
in stock
|
Buy Now |
|
RS
from US$1.43
|
1,175
in stock
|
Buy Now |
|
Newark Electronics
from US$1.12
|
9
in stock
|
Buy Now |
|
Avnet Abacus
-
|
1,941
in stock
|
Buy Now |
|
Avnet America
from US$0.65
|
0
in stock
|
Buy Now |
|
TME
from US$0.73
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.21
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.77
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.87
|
0
in stock
|
Buy Now |
|
Sager
from US$0.79
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.57
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.03
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.300/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Cat 3 Mod Jack/Plug 955036671 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, JACK, 6P6C, SMT | Farnell |
| Molex 95503-6671 RJ11 Connector | RS |
| Modular Conn, Jack, 6P6C, 1Port, Smt | Newark Electronics |
| Modular Connector, Modular Jack, 1 x 1 (Port), 6P6C, Cat3, Surface Mount | Avnet Abacus |
| Connector: RJ12 | TME |
| 6P6C STRAIGHT SURFACE MOUNT RJ11 MODULAR JACK CONNECTOR 95503 95503 | RS Americas |
| MDJCK 6/6 VT SMT | TTI Americas |
| 6/6 MOD JACK VERTICAL LO W PRO | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 6/6 VT SMT | Sager |
| 6/6 JACK SMT VERSION | Heilind Americas |
