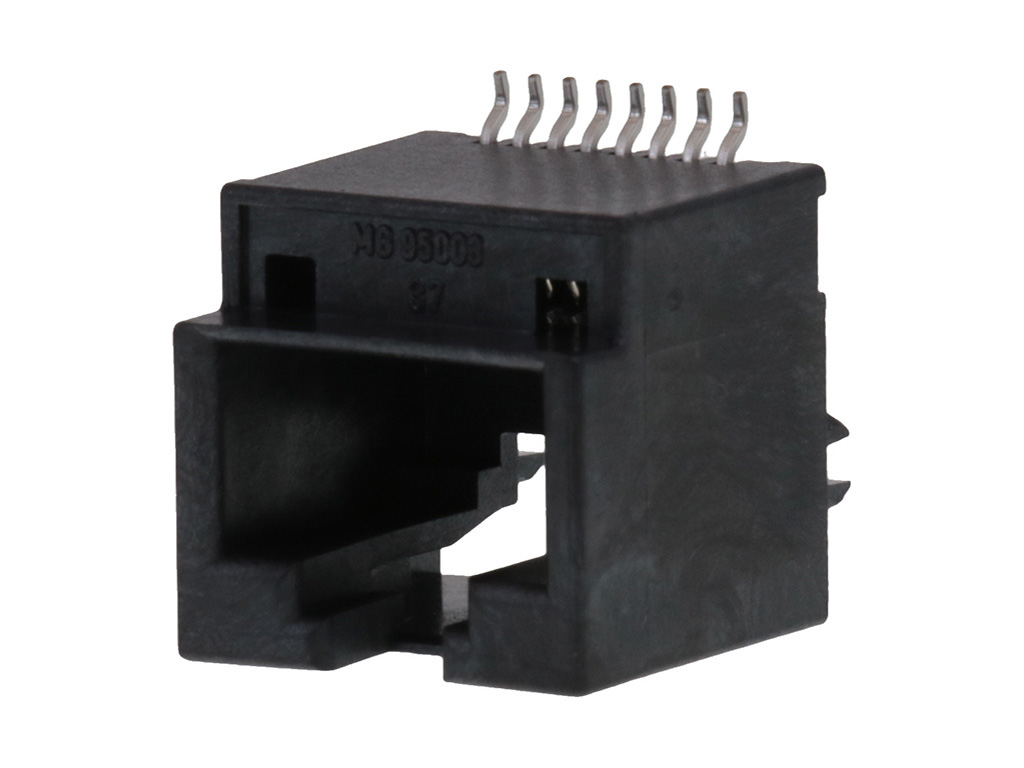

955036891 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Low Profile, Tube
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95503-6891,
0955036891 |
Where to Buy
Prices starting from US$0.54
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.05
|
7,344
in stock
|
Buy Now |
|
Heilind Americas
from US$0.64
|
6,048
in stock
|
Buy Now |
|
element14
from US$0.88
|
1,656
in stock
|
Buy Now |
|
Conrad
from US$0.71
|
288
in stock
|
Buy Now |
|
Avnet America
from US$0.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.54
|
0
in stock
|
Buy Now |
|
EME
from US$0.70
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 15.70mm |
| Keying To Mating Part | No |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.600/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MOD CONN, RJ45 JACK, 8P8C, SMT | Farnell |
| 8/8 JACK SMT VERSION | Heilind Americas |
| RJ45 CONN, JACK, 8P8C, 1PORT, SMT | element14 |
| Molex Cat 3 Mod Jack/Plug 955036891 Buchse Schwarz 1 St. | Conrad |
| Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Surface Mount | Avnet America |
