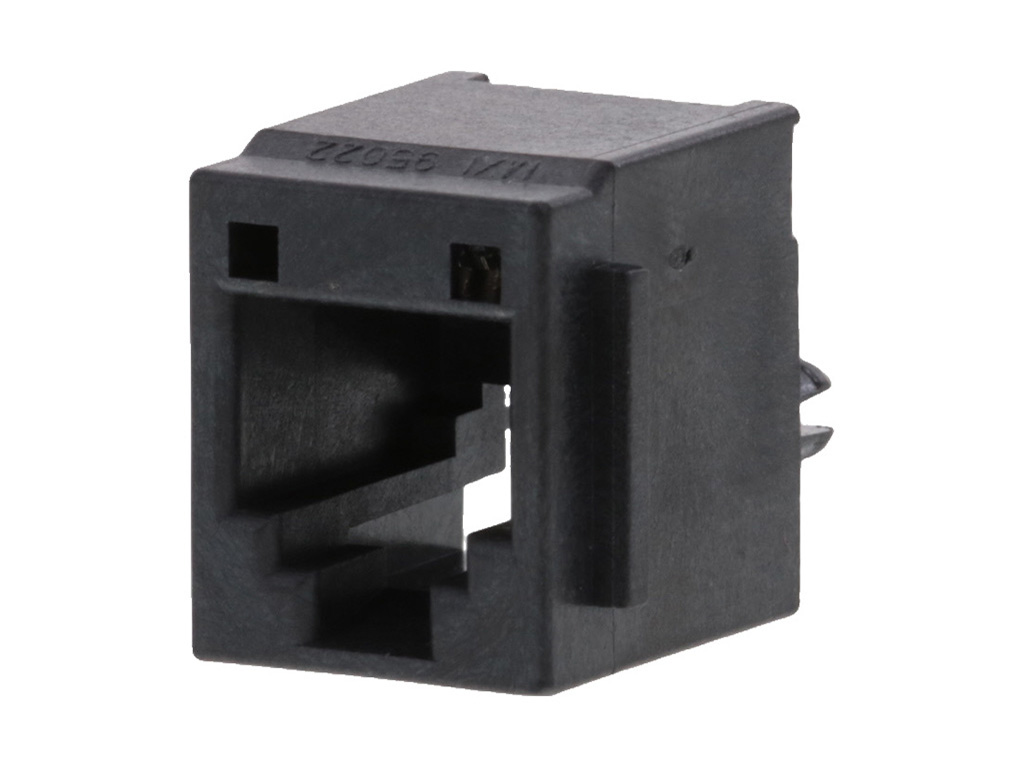

955222667 Modular Jack 6/6 by Molex
Modular Jack, Vertical, Top Entry, Through Hole, 6/6, High Profile, with Ribs, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95522-2667,
0955222667 |
Where to Buy
Prices starting from US$0.44
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.13
|
7,214
in stock
|
Buy Now |
|
element14
from US$0.73
|
7,214
in stock
|
Buy Now |
|
Farnell
from US$1.16
|
7,214
in stock
|
Buy Now |
|
Conrad
from US$1.35
|
6,726
in stock
|
Buy Now |
|
Rutronik
from US$0.44
|
4,928
in stock
|
Buy Now |
|
Heilind Europe
from US$0.65
|
883
in stock
|
Buy Now |
|
RS
from US$0.95
|
495
in stock
|
Buy Now |
|
TME
from US$0.60
|
0
in stock
|
Buy Now |
|
Compona
from US$0.45
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.72
|
0
in stock
|
Buy Now |
|
Sager
from US$0.77
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.79
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.04
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 16.25mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.670/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Modular Conn, Jack, 6P6C, 1 Port, Th | Newark Electronics |
| JACK, RJ11, CAT3, 6/6 | element14 |
| Molex Cat 3 Mod Jack/Plug 955222667 Buchse Schwarz 1 St. | Conrad |
| 6/6 Modular_Jack STANDARD HIGH | Rutronik |
| HIPRO TE 6/6 JACK | Heilind Europe |
| Molex 95522-2667 RJ11 Connector | RS |
| Connector: RJ11 | TME |
| MOLEX 95522-2667 Socket Square RJ 6p THT | Compona |
| 6/6 MOD JACK VERTICAL STD PRO | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 6/6 VT PANEL STOP RIBS | Sager |
| MDJCK 6/6 VT PANEL STOP RIBS | TTI Asia |
| Conn Modular Jack Receptacle 6 POS 1.27mm Solder ST Through Hole 6 Terminal Single Port Tray | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 955222667?
Additional datasheets, footprints and schematics for 955222667 are listed on our Part Details page. You can also find images and similar parts to 955222667 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 955222667 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 955222667 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 955222667 fall under?
The 955222667 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 955222667 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 955222667 you can contact the distributor directly for product support, shipping queries etc.
Is the 955222667 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 955222667 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Conrad and Rutronik have stock available or on a lead time for 955222667.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 955222667 often in real-time on the comparison pages.
What if I can't find stock of 955222667?
You can fill out our help required form which you can use to request a quote for 955222667 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
