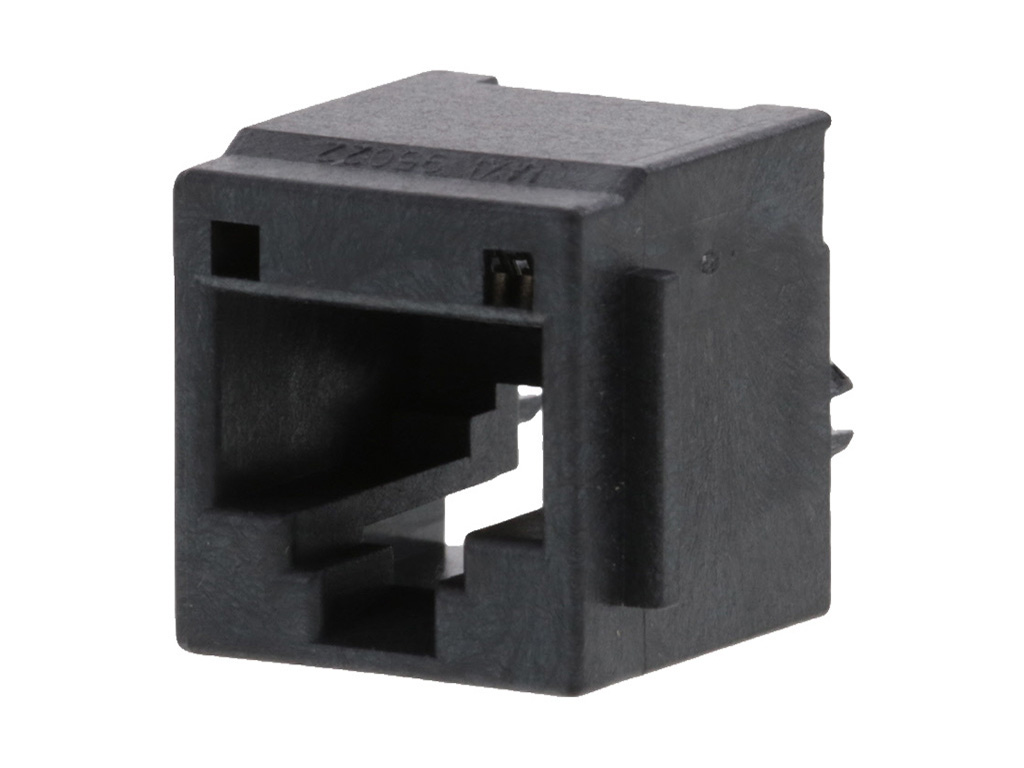

955222887 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Through Hole, 8/8, High Profile, with Ribs, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95522-2887,
0955222887 |
Where to Buy
Prices starting from US$0.58
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.14
|
4,704
in stock
|
Buy Now |
|
RS
from US$1.12
|
2,608
in stock
|
Buy Now |
|
Conrad
from US$1.44
|
1,640
in stock
|
Buy Now |
|
TME
from US$0.79
|
215
in stock
|
Buy Now |
|
element14
from US$0.95
|
13
in stock
|
Buy Now |
|
Farnell
from US$1.24
|
13
in stock
|
Buy Now |
|
Newark Electronics
from US$1.22
|
0
in stock
|
Buy Now |
|
Compona
from US$0.58
|
0
in stock
|
Buy Now |
|
Sager
from US$0.74
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.76
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.59
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 16.25mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.100/g |
| Orientation | Vertical (Top Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 MOD JACK VERTICAL HI PRO | TTI Europe |
| Molex 95522-2887 RJ45 Connector | RS |
| Molex Cat 3 Mod Jack/Plug 955222887 Buchse Schwarz 1 St. | Conrad |
| Connector: RJ45 | TME |
| JACK, RJ45, 8/8 | element14 |
| Connector, Rj45 Jack, 8P8C, 1 Port, Th | Newark Electronics |
| MOLEX 95522-2887 Socket Square RJ 8p THT | Compona |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 VT PANEL STOP RIBS | Sager |
| HIPRO TE 8/8 JACK | Heilind Americas |
