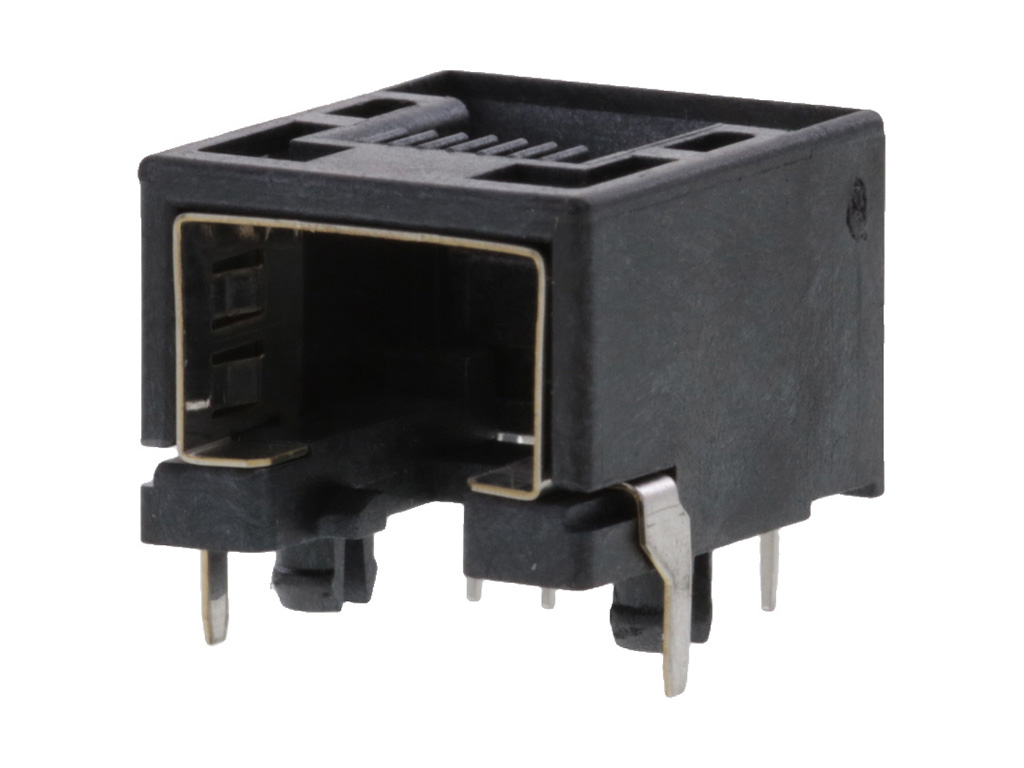

955402881 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Through Hole, 8/8, Int. Shielded, Low Profile, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95540-2881,
0955402881 |
Where to Buy
Prices starting from US$0.85
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$2.17
|
8,102
in stock
|
Buy Now |
|
Conrad
from US$2.45
|
6,010
in stock
|
Buy Now |
|
Farnell
from US$1.89
|
5,409
in stock
|
Buy Now |
|
element14
from US$1.55
|
4,530
in stock
|
Buy Now |
|
Newark Electronics
from US$1.72
|
3,933
in stock
|
Buy Now |
|
TTI Europe
from US$0.96
|
2,520
in stock
|
Buy Now |
|
TME
from US$1.22
|
845
in stock
|
Buy Now |
|
EME
from US$1.20
|
41
in stock
|
Buy Now |
|
Heilind Americas
from US$1.33
|
21
in stock
|
Buy Now |
|
Offical Electronic
-
|
720
in stock
|
Buy Now |
|
Rutronik
from US$1.18
|
0
in stock
|
Buy Now |
|
Compona
from US$0.85
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.89
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.01
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Pcb | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.611/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 95540-2881 RJ45 Connector | RS |
| Molex Cat 3 Mod Jack/Plug 955402881 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, TH | Farnell |
| SOCKET, PCB, R/A, RJ45, SCREENED | element14 |
| Connector, Rj45, Jack, 8P8C, Cat3 | Newark Electronics |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| Connector: RJ45 | TME |
| RA LP TH SH JACK 8/8 | Heilind Americas |
| Modular_Jack 90° LowProfile Shielded | Rutronik |
| MOLEX 95540-2881 Socket Square RJ 8p THT | Compona |
| MDJCK 8/8 RA LOPRO SHLD | TTI Asia |
