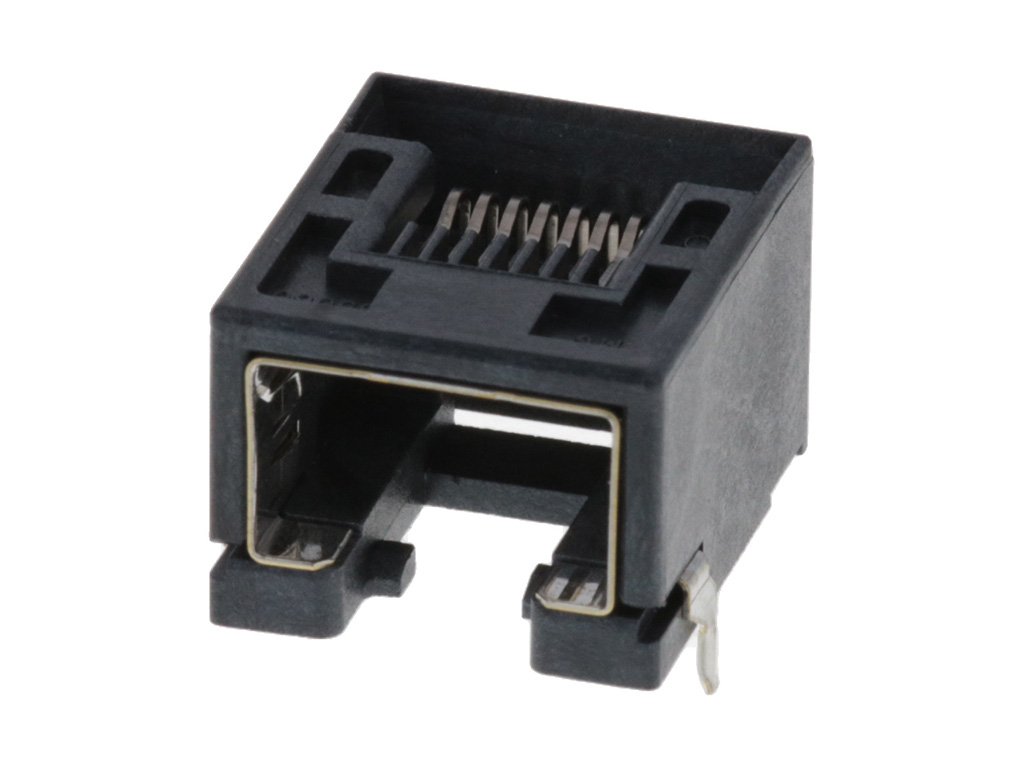

955406880 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Surface Mount, 8/8, Int. Shielded, Low Profile, 2.25mm Side Solder Tabs, Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95540-6880,
0955406880 |
Where to Buy
Prices starting from US$0.40
| Distributor | Stock | ||
|---|---|---|---|
|
Rutronik
from US$1.13
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.41
|
0
in stock
|
Buy Now |
|
element14
from US$1.62
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.79
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.32
|
0
in stock
|
Buy Now |
|
Sager
from US$1.21
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.19
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.90
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.65
|
0
in stock
|
Buy Now |
|
EME
from US$0.40
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.50mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.700/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 0.600µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Surface Mount |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RJ45 Modular_Jack 90° SMT W PEGS | Rutronik |
| Rj45 Connector, Jack, 8P8C, 1Port, Smt | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, SMT | element14 |
| Molex Cat 3 Mod Jack/Plug 955406880 Buchse Schwarz 1 St. | Conrad |
| RA LP SMT SH JACK 8/8 | TTI Europe |
| Modular Connectors / Ethernet Connectors RA LP SMT SH JACK 8/8 W/SOLD.PEGS | Sager |
| RA LP SMT SH JACK 8/8 W/S EGS | Heilind Americas |
