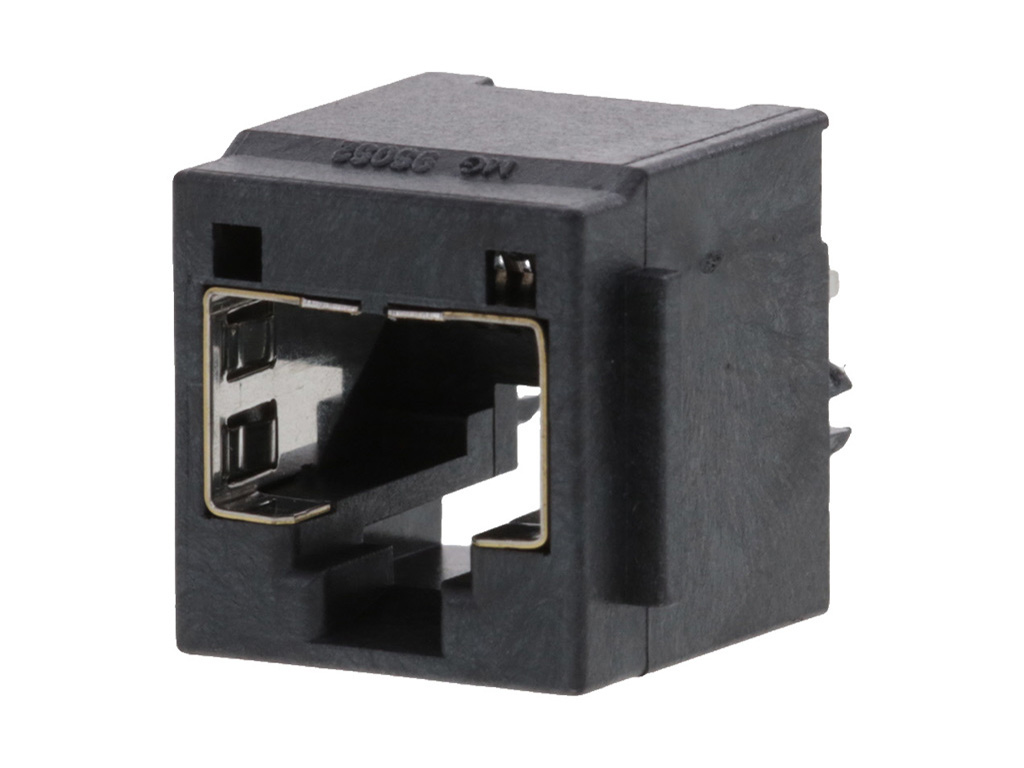

955522887 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Vertical, Top Entry, Through Hole, 8/8, Int. Shielded, with Ribs, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
95552-2887,
0955522887 |
Where to Buy
Prices starting from US$1.27
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$2.00
|
40,992
in stock
|
Buy Now |
|
Conrad
from US$3.44
|
27,340
in stock
|
Buy Now |
|
Farnell
from US$3.17
|
24,607
in stock
|
Buy Now |
|
Newark Electronics
from US$1.65
|
6,411
in stock
|
Buy Now |
|
element14
from US$2.79
|
3,289
in stock
|
Buy Now |
|
RS
from US$2.92
|
1,447
in stock
|
Buy Now |
|
Rutronik
from US$1.93
|
1,120
in stock
|
Buy Now |
|
Heilind Americas
from US$1.94
|
354
in stock
|
Buy Now |
|
TME
from US$1.97
|
298
in stock
|
Buy Now |
|
Avnet Abacus
-
|
12,432
in stock
|
Buy Now |
|
Avnet America
from US$2.29
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.92
|
0
in stock
|
Buy Now |
|
Compona
from US$1.27
|
0
in stock
|
Buy Now |
|
|
TTI Americas
from US$1.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.41
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.96
|
0
in stock
|
Buy Now |
|
EME
from US$1.86
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 125V DC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 2500 |
| Inverted Top Latch | No |
| Jack Height | 16.25mm |
| Light Pipes Leds | None |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold over Palladium Nickel |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.378/g |
| Orientation | Vertical (Top Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.051µm, 1.016µm |
| Plating Min Termination | 1.905µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 8/8 MOD JACK VERTICAL STD PRO | TTI Europe |
| Molex Cat 3 Mod Jack/Plug 955522887 Buchse Schwarz 1 St. | Conrad |
| MOD CONN, RJ45 JACK, 8P8C, TH | Farnell |
| Phone Connector, pcb Mount,8 Contacts, pin, pc Tail Terminal, locking |Molex 95552-2887 | Newark Electronics |
| SOCKET, PCB, VERTICAL, RJ45, SCREENED | element14 |
| Molex 95552-2887 RJ45 Connector | RS |
| RJ45 Modular_Jack Shielded High-Temp | Rutronik |
| Connector: RJ45 | TME |
| 95552, CAT3 RJ45 MODULAR JACK SOCKET, SHIELDED, STRAIGHT, THROUGH HOLE | RS Americas |
| MOLEX 95552-2887 Socket Square RJ 8p THT | Compona |
| MDJCK 8/8 VT TE TH SHLD | TTI Americas |
| TE TH IN.SHIELD JACK 8/8 | TTI Asia |
