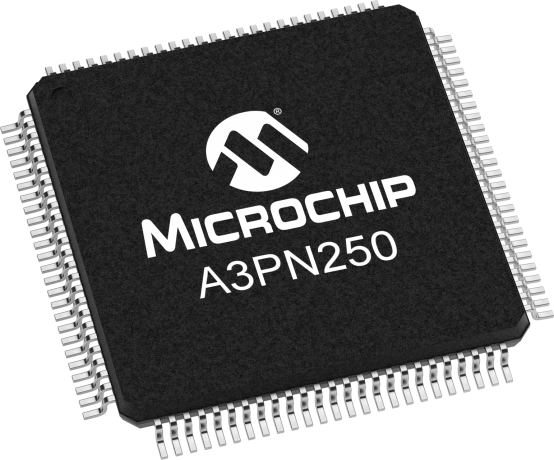

A3PN250-VQG100 by Microchip Technology
Ultra Low Density FPGAs
| Status: | Active |
|---|---|
| Series: | A3PN250 |
| RoHS: | Compliant |
Key Features
• Low TOC (total cost of ownership)
• System performance of 350 MHz
• 1.5V Core voltage support
• Proven Security
• Protection from Overbuilding and Cloning
• Exceptional Reliability
Where to Buy
Prices starting from US$7.58
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$7.58
|
887
in stock
|
Buy Now |
|
Newark Electronics
from US$13.90
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$13.24
|
0
in stock
|
Buy Now |
|
Avnet America
from US$12.41
|
0
in stock
|
Buy Now |
|
TME
from US$12.62
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| 3K logic elements |
| 36Kb RAM |
| 1Kb FlashROM |
| 1PLL in CCC |
| Temperature - Commercial, Industrial |
Specifications
| Product Type | ProASIC3 nano |
|---|---|
| eNVM | No |
| eSRAM | No |
| Logic Elements | 3K |
| Fabric RAM | 36 Kbits |
| Fabric ROM | 1 Kbits |
| Fabric uPROM | No |
| Math Blocks 18x18 | No |
| PCIe | No |
| MSS I/O | No |
| FPGA I/O | No |
| Max User I/O | 68 |
| Data Security | No |
| Analog | No |
| Temp min | -40C |
| Temp max | 100C |
| Pins | Packaging | 100 | TQFP |
| Temp Range | -20C to +85C |
| Packing Media | Tray (1) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.497 |
| Shipping Weight (kg) | 4.088889 |
| Lead Count | 100 |
| Package Type | TQFP |
| Package Width or Size | 14x14x1mm |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| ProASIC3 Nano FPGA, 3KLEs | Microchip Technology |
| Proasic3 Nano Fpga, 3Kles 100 Tqfp 14X14X1Mm Tray Rohs Compliant: Yes |Microchip Technology A3PN250-VQG100 | Newark Electronics |
| ProASIC® 3 Series 1.425 V to 1.575 V 250K System Gate Flash FPGA - VQFP-100 | Future Electronics |
| IC: FPGA | TME |
A3PN250-VQG100 Connectors by Microsemi
FPGA PROASIC3 NANO 250K GATES COMM 130NM 1.5V 100VQFP
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a A3PN250-VQG100?
Additional datasheets, footprints and schematics for A3PN250-VQG100 are listed on our Part Details page. You can also find images and similar parts to A3PN250-VQG100 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for A3PN250-VQG100 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view A3PN250-VQG100 price breaks, MOQs, lead times, inventory and SKUs from distributors.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the A3PN250-VQG100 you can contact the distributor directly for product support, shipping queries etc.
Is the A3PN250-VQG100 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Microchip Technology.
Which authorised distributors for A3PN250-VQG100 have stock available?
Authorised distributors including Microchip Technology, Newark Electronics, Future Electronics, Avnet America and TME have stock available or on a lead time for A3PN250-VQG100.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for A3PN250-VQG100 often in real-time on the comparison pages.
What if I can't find stock of A3PN250-VQG100?
You can fill out our help required form which you can use to request a quote for A3PN250-VQG100 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
