AA049354-C Network Transceiver Modules by ATGBICS

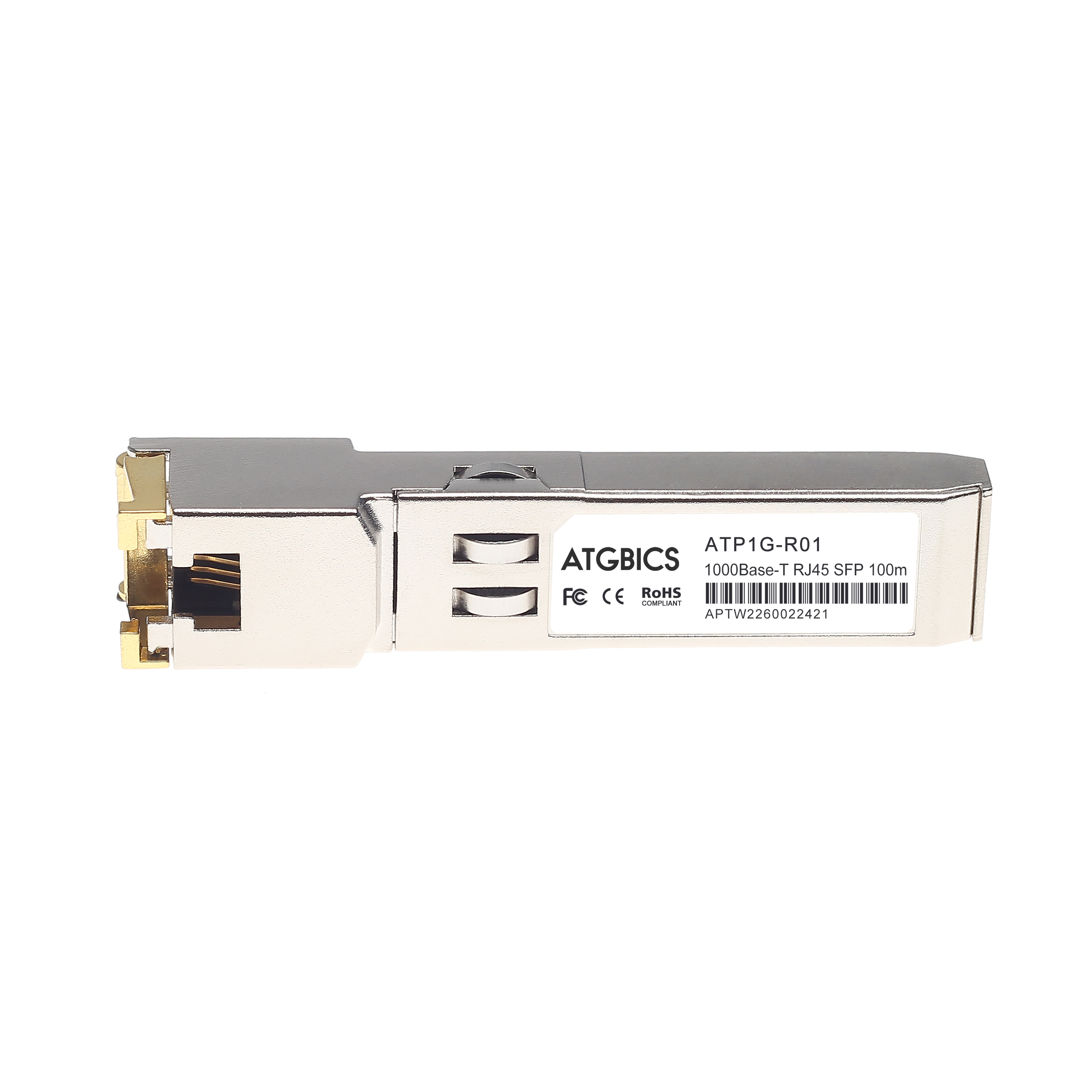

AA049354 Dell Compatible Transceiver SFP 1000Base-T (Copper RJ45, Ext Temp, 100m)
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Compliant |
No distributors results available
Features
| Single-mode fiber (SMF) supported |
| Multi-mode fiber (MMF) supported |
| Ethernet LAN |
| Auto MDI/MDI-X |
| Digital Diagnostics Monitoring (DDM) |
| Plug and Play |
| Hot-Plug support |
| Hot-swap |
| Easy to install |
| Sustainability compliance |
Specifications
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate (megabit per second) | 1250 |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Maximum transfer distance (meter) | 100 |
| Ethernet interface type | Gigabit Ethernet |
| Copper ethernet cabling technology | 1000BASE-TX |
| Product colour | Silver |
| Housing material | Metal |
| Country of origin | China |
| Brand compatibility | Dell |
| Certification | CE, FCC, RoHS |
| Input voltage (Volt) | 3.3 |
| Maximum voltage (Volt) | 4 |
| Power consumption (typical) (Watt) | 1.3 |
| Maximum operating temperature (degrees Celcius) | 70 |
| Operating temperature (T-T) (degrees Celcius) | 0 - 70 |
| Storage temperature (T-T) (degrees Celcius) | -40 - 85 |
| Operating relative humidity (H-H) (percent) | 5 - 85 |
| Storage relative humidity (H-H) (percent) | 5 - 85 |
| Width (millimeter) | 13.4 |
| Depth (millimeter) | 56.6 |
| Height (millimeter) | 8.5 |
| Weight (gram) | 24 |
| Number of products included (piece(s)) | 1 |
| Package type | Box |
| Sustainability certificates | RoHS |
| Doesn't contain | Lead |
