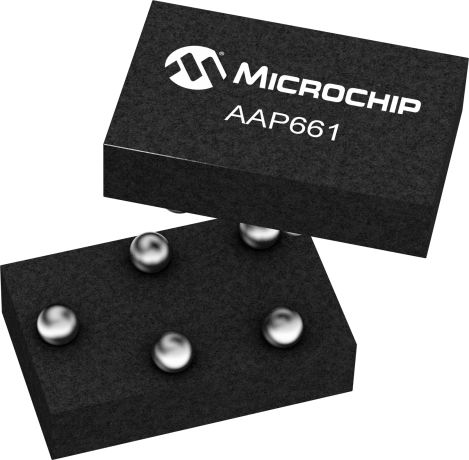

AAP661AS-M5A-GLF-TR More Semiconductors - ICs by Microchip Technology
Electret Condenser Microphone (ECM) Analog Pre-amplifier
| Status: | Active |
|---|---|
| Series: | AAP661 |
| RoHS: | Compliant |
Features
| Selectable gain configurations - 16dB and 19dB |
| Ultra low input capacitance - 0.35pF typical |
| Ultra low equivalent input noise performance - 1.9?VRMS to 2.5?VRMS (Cmic = SC, varies with gain) |
| 8kV ESD tolerance |
| High RFI tolerance, low output impedance (25?) |
| Excellent THD performance (<0.5%) |
| Ultra low quiescent current (250?A typical) |
| Chip-scale SMD bumped packaging (930?m x 580?m, 350?m thick) |
Specifications
| Supply Voltage | 1.6V to 5.5V |
|---|---|
| Typical Supply Voltage | 1.6V |
| Input Capacitance | 0.35pF |
| Gain (dB) | 15,19,30 |
| Input Referred Noise | 2.5 |
| THD | <0.5% |
| Quiescent current(uA) | 250 |
| Output Impedance | 25 |
| ESD (HBM) | +/-8KV |
| Applicable Microphone | ECM |
| Pins | Packaging | 5 | WLCSP |
| Temp Range | -5C to +55C |
| Packing Media | Tape and reel (3500) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e1 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0 |
| Shipping Weight (kg) | 0.0 |
| Lead Count | 5 |
| Package Type | WLCSP |
| Package Width or Size | 0.95x0.60x0.345mm |
| Soldering Composition | SAC305 |
Alternative Descriptions
| Electret Microphone Pre-Amplifier with Programmable Filter, 16db Gain | Microchip Technology |
| Electret Microphone Pre-Amplifier With Programmable Filter, 16Db Gain 5 Wlcsp 0.95X0.60X0.345Mm T/R Rohs Compliant: Yes |Microchip Technology AAP661AS-M5A-GLF-TR | Newark Electronics |
| Electret Microphone Pre-Amplifier with Programmable Filter 16dB 5-Pin Micro-SMD | Avnet America |
