AAP803A3 More Semiconductors - ICs by Microchip Technology
ECM Microphone Preamplifier
| Status: | Active |
|---|---|
| Series: | AAP803 |
| RoHS: | Compliant |
The AAP803Ax preamplifier provides reduced input capacitance, improved noise performance and larger output swing at a lower supply voltage.
The AAP803Ax is offered in two versions with the part numbers AAP803A1 and AAP803A3. The AAP803A1 has 3 gain settings (low, mid and high and the A3 has 2 gain settings (mid and max) both are designed with low quiescent current consumption for use in lower power typically battery powered applications. The gain setting is done by selecting the proper FB pin for the signal path (1, 2, or 1 and 2).

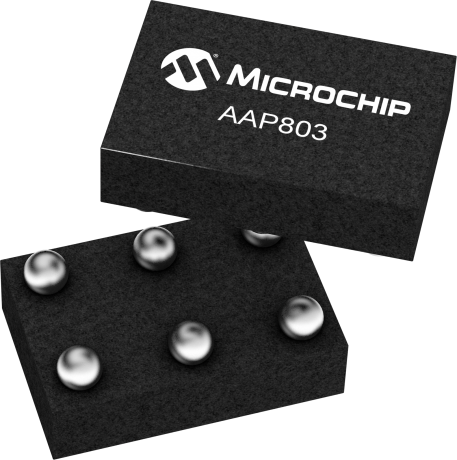

The AAP803Ax is provided in a chip scale SMD package. The package size is 820µm x 550µm; with an overall height of 315µm including solder bumps. This extremely small package size and aspect ratio is optimum for use in small diameter microphones.
Features
| Adjustable Voltage Gain up to 27dB, 100Hz to 10kHz |
| Quiescent Current 125µA |
| Low Voltage Operation 1.5V with 450? Load |
| Low Input Capacitance 0.7pF |
| Low Output Impedance <30? |
| Low Noise <1.3µV RMS Input Noise (A-weighted, input shorted) |
| ESD Protection 7.5kV Minimum at Output |
| High Pass, Low Pass and Band Pass Filtering with External Components |
| RoHS Compliant & Halogen Free |
| Microphone Preamplifiers |
Specifications
| Supply Voltage | 1.6V to 5V,3.5V to 10V |
|---|---|
| Typical Supply Voltage | 1.6V, 5V |
| Input Capacitance | 0.7pF |
| Gain (dB) | 11 to 18,16 or 26 |
| Input Referred Noise | 1.5 |
| THD | <1.1% @Vout=-24dBV,<0.85% @Vout=-24dBV |
| Quiescent current(uA) | 107, 127 |
| Output Impedance | 20 |
| ESD (HBM) | +/-7.5kV |
| Applicable Microphone | ECM |
| Pins | Packaging | 6 | WLCSP |
| Temp Range | -5C to +55C |
| Packing Media | Tape and reel (3500) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e1 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 6.2E-4 |
| Shipping Weight (kg) | 0.026571 |
| Lead Count | 6 |
| Package Type | WLCSP |
| Package Width or Size | 0.84x0.57x0.355mm |
| Soldering Composition | SnAg4Cu0.5 |
Alternative Descriptions
| Electret Condenser Microphone Pre-Amplifier, 16/26Db Gain 6 Wlcsp 0.84X0.57X0.355Mm T/R Rohs Compliant: Yes |Microchip Technology AAP803A3 | Newark Electronics |
| Electret Condenser Microphone Pre-Amplifier, 16/26dB Gain | Microchip Technology |
