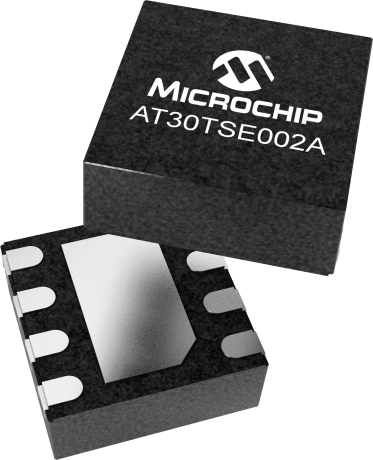

AT30TSE002A-MAH-T More Semiconductors - ICs by Microchip Technology
Integrated Temperature Sensor with EEPROM
| Status: | Active |
|---|---|
| Series: | AT30TSE002A |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.90
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.90
|
1,436
in stock
|
Buy Now |
|
Newark Electronics
from US$0.97
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$0.99
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.01
|
0
in stock
|
Buy Now |
|
TME
from US$0.94
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Meets JEDEC Specification JC42.4 |
| Temperature Sensor + 2 Kbit Serial EEPROM |
| EEPROM for Serial Presence Detect (SPD) |
| Optimized for Voltage Range: 2.7V to 3.6V |
| Shutdown/Standby Current: 3 µA (max.) |
| meets 25ms to 35ms SMbus timeout |
| DFN-8 |
| Write 1.1 mA (typical) for 3.5 ms (typical) |
| Read 100 µA (typical) |
| Permanent and Reversible Software Write Protect |
| Software Write Protection for the lower 1 Kbit |
| Organized as 1 block of 256 x 8-bit (2 Kbit) |
| Class B — Temperature-to-Digital Converter |
| ±0.5°C/±1°C (typ./max.) +75°C to +95°C |
| ±1°C/±2°C (typ./max.) +40°C to +125°C |
| ±2°C/±3°C (typ./max.) -20°C to +125°C |
| Operating Current: 200 µA (typical) |
Specifications
| Pins | Packaging | 8 | WDFN |
|---|---|
| Temp Range | -40C to +85C |
| Packing Media | Tape and reel (5000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| AT30TSE002A - Complete Datasheet |
Application Notes |
|---|
| AN_8736 - Industry Support Using the AT30TS750 Family of Digital Temperature Sensors |
Environmental Information
| JEDEC Indicator | e4 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.0143 |
| Shipping Weight (kg) | 0.0 |
| Lead Count | 8 |
| Package Type | WDFN |
| Package Width or Size | 2x3x0.8mm |
| Soldering Composition | NiPdAu |
Alternative Descriptions
| 2.7-3.6V, 400kHz, Ext Tmp, 8-WDFN | Microchip Technology |
| 2.7-3.6V, 400Khz, Ext Tmp, 8-Wdfn 8 Wdfn 2X3X0.8Mm T/R Rohs Compliant: Yes |Microchip Technology AT30TSE002A-MAH-T | Newark Electronics |
| 1-ch Tmp Snsr, 2K SPD EE, I2C - 2.7-3.6V, 400kHz, Ext Tmp, 8-WDFN | Future Electronics |
| IC: temperature sensor | TME |
