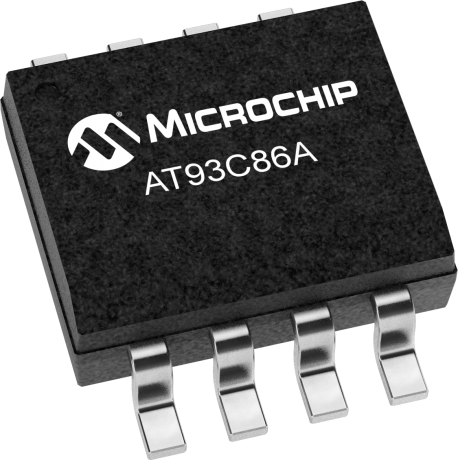

AT93C86A-10SU-2.7 More Semiconductors - ICs by Microchip Technology
16Kb Microwire (3-wire) Serial EEPROM
| Status: | Active |
|---|---|
| Series: | AT93C86A |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.27
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.34
|
1,816
in stock
|
Buy Now |
|
RS
from US$0.38
|
921
in stock
|
Buy Now |
|
element14
from US$0.43
|
204
in stock
|
Buy Now |
|
Farnell
from US$0.42
|
204
in stock
|
Buy Now |
|
TME
from US$0.58
|
194
in stock
|
Buy Now |
|
EBV Elektronik
-
|
6,300
in stock
|
Buy Now |
|
Avnet America
from US$0.31
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$0.27
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| User selectable 2048 x 8 or 1024 x 16 Organization (16 Kbit) |
| Industry Standard Microwire Serial I/O |
| Up to 2 MHz clock compatibility |
| Self-Timed Erase and Write Cycles (5 ms max.) |
| Read current 0.5 mA (Typ), 2.0 mA (Max) |
| Write current 0.5 mA (Typ),2.0 mA (Max) |
| Standby current 10.0 uA (Typ), 15.0 uA (Max) |
| Software Write-Protection |
| More than 1 million erase/write cycles |
| Data retention > 100 years |
| Grade 1 Temperature Range: -40°C to 125°C |
| Qualified for Automotive Applications |
| Factory Programming Available |
| Available in 8-pin SOIC (150 mil), 8-pin TSSOP, 8-pad UDFN, and 8-pin PDIP packages |
Specifications
| Density (Organization) | 16K bits (x8 or x16) |
|---|---|
| Operating Voltage Min. (V) | 1.8 |
| Oper Voltage Max (V) | 5.5 |
| Max. Clock Freq. | 2 MHz |
| Page Size (bytes) | 0 |
| Write Protected | True |
| Endurance | 1,000,000 |
| Data Retention (Years) | 0 |
| Battery Backup | False |
| Pins | Packaging | 8 | SOIC |
| Temp Range | -40C to +85C |
| Packing Media | Tube (100) |
Last 6 months Inventory & Pricing History
Resources
Board Design Files |
|---|
| IBIS Model - AT93C86A Device |
Brochures |
|---|
| Atmel Serial EEPROM Products |
| Atmel System Peripheral and Memory Products Brochure |
| Automotive Solutions |
| Product Selection Guide |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.078 |
| Shipping Weight (kg) | 0.25 |
| Lead Count | 8 |
| Package Type | SOIC |
| Package Width or Size | .150In(3.90mm) |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| 2.7-5.5V, 2MHz, Ind Temp, 8-SOIC-N | Microchip Technology |
| EEPROM Serial-3Wire 16K-bit 2K x 8/1K | RS |
| SERIAL EEPROM, 16KBIT, 2MHZ, SOIC-8 | element14 |
| IC: EEPROM memory | TME |
| EEPROM, 16 Kbit, 2K x 8bit / 1K x 16bit, Microwire, 1 MHz, SOIC, 8 Pins | EBV Elektronik |
