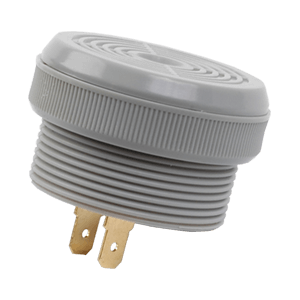

CPE-753 Buzzers by Same Sky
36.5 mm, 6~28 V, 82 dB, 3.6 kHz, Panel Mount w/Tabs, Driving Circuit, Piezo Audio Indicator Buzzer
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
No distributors results available
Specifications
| Rated Frequency (Hz) | 3600 |
|---|---|
| Sound Pressure (dB) | 82 |
| Height (mm) | 23.5 |
| Dimensions LxWxH (in) | 1.44, 1.44, 0.93 |
| Dimensions LxWxH (mm) | 36.5, 23.5, 36.5 |
| Curr. Consumption (mA) | 10 |
| Mounting Style | Panel Mount |
| Driving Circuit | Yes |
| Technology | Piezo |
| Washable | No |
| Length (mm) | 36.5 |
| Width (mm) | 36.5 |
| Operating Temp MIN (°C) | -30 |
| Operating Temp MAX (°C) | 85 |
| Input Type | Vdc |
| Rated Voltage | 12 |
| Wave Solderable | No |
| Shape | Round |
| Illumination | No |
CPE-753 buzzers by CUI Inc
36.5 mm, 6~28 V, 82 dB, 3.6 kHz, Panel Mount w/Tabs, Driving Circuit, Piezo Audio Indicator Buzzer
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Curr. Consumption (mA) | 10 |
|---|---|
| Dimensions LxWxH (in) | 1.44 x 1.44 x 0.93 |
| Dimensions LxWxH (mm) | 36.5 x 36.5 x 23.5 |
| Driving Circuit | Yes |
| Height (mm) | 23.5 |
| Input Type | Vdc |
| Length (mm) | 36.5 |
| Mounting Style | Panel Mount |
| Operating Temp MAX (°C) | 85 |
| Operating Temp MIN (°C) | -30 |
| Rated Frequency (Hz) | 3600 |
| Rated Voltage | 12 |
| Shape | Round |
| Sound Pressure (dB) | 82 |
| Technology | Piezo |
| Washable | No |
| Wave Solderable | No |
| Width (mm) | 36.5 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a CPE-753?
Additional datasheets, footprints and schematics for CPE-753 are listed on our Part Details page. You can also find images and similar parts to CPE-753 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for CPE-753 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view CPE-753 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does CPE-753 fall under?
The CPE-753 is listed under Audio > Buzzers > Audio Indicators.
Can I view similar or alternative parts?
You can view similar parts to CPE-753 when available in the Audio Indicators range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the CPE-753 you can contact the distributor directly for product support, shipping queries etc.
Is the CPE-753 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Same Sky.
