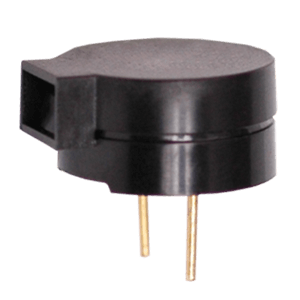

CSQ-RP-E Buzzers by Same Sky
12 mm, 3 V, 85 dB, Through Hole, Side Port, Magnetic Audio Transducer Buzzer
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
Specifications
| Sound Pressure (dB) | 85 |
|---|---|
| Height (mm) | 6 |
| Dimensions LxWxH (in) | 0.47, 0.24, 0.47 |
| Dimensions LxWxH (mm) | 12, 6, 12 |
| Curr. Consumption (mA) | 80 |
| Mounting Style | Through Hole |
| Driving Circuit | No |
| Technology | Magnetic |
| Washable | No |
| Length (mm) | 12 |
| Width (mm) | 12 |
| Operating Temp MIN (°C) | -20 |
| Operating Temp MAX (°C) | 60 |
| Input Type | Vo-p |
| Rated Voltage | 1.5 |
| Wave Solderable | No |
| Shape | Round |
| Illumination | No |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Buzzer, 12 Mm Round, 6 Mm Deep, M, 2730 Hz, 1.5 V, Through Hole, No Driving Circuit |Same Sky CSQ-RP-E | Newark Electronics |
| Sound transducer: electromagnetic signaller | TME |
| MAG TRANSDUCER, BUZZER, 2.73KHZ, 91DB | Farnell |
CSQ-RP-E buzzers by CUI Inc
12 mm, 3 V, 85 dB, Through Hole, Side Port, Magnetic Audio Transducer Buzzer
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Curr. Consumption (mA) | 80 |
|---|---|
| Dimensions LxWxH (in) | 0.47 x 0.47 x 0.24 |
| Dimensions LxWxH (mm) | 12 x 12 x 6 |
| Driving Circuit | No |
| Height (mm) | 6 |
| Input Type | Vo-p |
| Length (mm) | 12 |
| Mounting Style | Through Hole |
| Operating Temp MAX (°C) | 60 |
| Operating Temp MIN (°C) | -20 |
| Rated Voltage | 1.5 |
| Shape | Round |
| Sound Pressure (dB) | 85 |
| Technology | Magnetic |
| Washable | No |
| Wave Solderable | No |
| Width (mm) | 12 |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a CSQ-RP-E?
Additional datasheets, footprints and schematics for CSQ-RP-E are listed on our Part Details page. You can also find images and similar parts to CSQ-RP-E on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for CSQ-RP-E on our Product Comparison page. Access via the 'View Pricing & Stock' button to view CSQ-RP-E price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does CSQ-RP-E fall under?
The CSQ-RP-E is listed under Audio > Buzzers > Audio Transducers.
Can I view similar or alternative parts?
You can view similar parts to CSQ-RP-E when available in the Audio Transducers range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the CSQ-RP-E you can contact the distributor directly for product support, shipping queries etc.
Is the CSQ-RP-E RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Same Sky.
Which authorised distributors for CSQ-RP-E have stock available?
Authorised distributors including Newark Electronics, Future Electronics, TME, Farnell and Ozdisan have stock available or on a lead time for CSQ-RP-E.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for CSQ-RP-E often in real-time on the comparison pages.
What if I can't find stock of CSQ-RP-E?
You can fill out our help required form which you can use to request a quote for CSQ-RP-E from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
