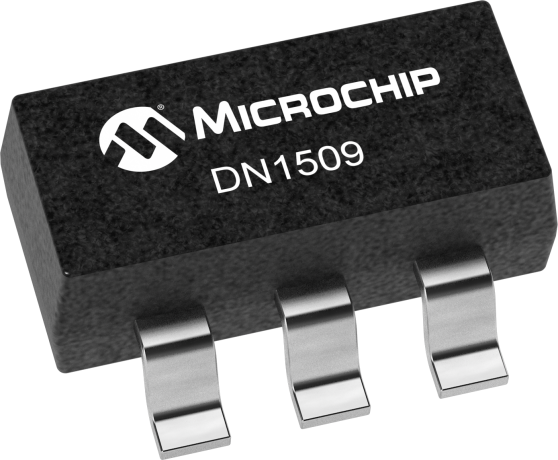

DN1509K1-G More Semiconductors - Discretes by Microchip Technology
90V, 6 Ohm, N-Channel, Depletion Mode, Vertical DMOS FET
| Status: | Active |
|---|---|
| Series: | DN1509 |
| RoHS: | Compliant |
Features
| High input impedance |
| Low input capacitance |
| Fast switching speeds |
| Low on-resistance |
| Free from secondary breakdown |
| Low input and output leakages |
Specifications
| BVdsx min (V) | 90 |
|---|---|
| RDS (Ohms) | 6 |
| Vgs(off) min (V) | -1.8 |
| Vgs(off) max (V) | -3.5 |
| Package | SOT-89, SOT-23 |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -55C to +150C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| MOSFET, DEPLETION-MODE, 90V, 6 Ohm | Microchip Technology |
| Mosfet, Depletion-Mode, 90V, 6 Ohm 5 Sot-23 T/R |Microchip Technology DN1509K1-G | Newark Electronics |
| Transistor: N-MOSFET | TME |
