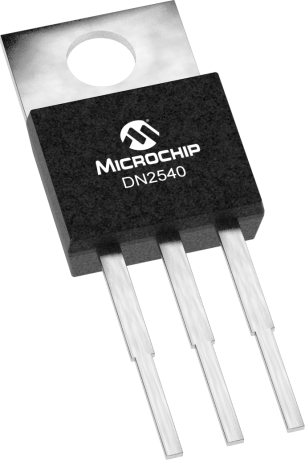

DN2540N5-G Transistors by Microchip Technology
400V, 25 Ohm, N-Channel, Depletion Mode, Vertical DMOS FET
| Status: | Active |
|---|---|
| Series: | DN2540 |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$1.27
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.87
|
1,740
in stock
|
Buy Now |
|
Farnell
from US$1.77
|
1,710
in stock
|
Buy Now |
|
ECOM
from US$1.97
|
11
in stock
|
Buy Now |
|
Future Electronics
from US$1.62
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.41
|
0
in stock
|
Buy Now |
|
Microchip Technology
from US$1.27
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| High input impedance |
| Low input capacitance |
| Fast switching speeds |
| Low on-resistance |
| Free from secondary breakdown |
| Low input and output leakage |
Specifications
| BVdsx min (V) | 400 |
|---|---|
| RDS (Ohms) | 25 |
| Vgs(off) min (V) | -1.5 |
| Vgs(off) max (V) | -3.5 |
| Package | TO-92, TO-220, SOT-89 |
| Pins | Packaging | 3 | TO-220 |
| Temp Range | -55C to +150C |
| Packing Media | Conductive Tube (50) |
Last 6 months Inventory & Pricing History
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 1.8902 |
| Shipping Weight (kg) | 2.8 |
| Lead Count | 3 |
| Package Type | TO-220 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| MOSFET, N CH, 400V, 0.5A, TO-220AB-3 | element14 |
| MOSFET-N depl., Vds=400V, Id=0.5A, P=15W, Ron=25Ohm | ECOM |
| DN2540 Series 400 V 500 mA N-Channel Depletion-Mode Vertical DMOS FETs -TO-220-3 | Future Electronics |
| MOSFET, DEPLETION-MODE, 400V, 25 Ohm | Microchip Technology |
