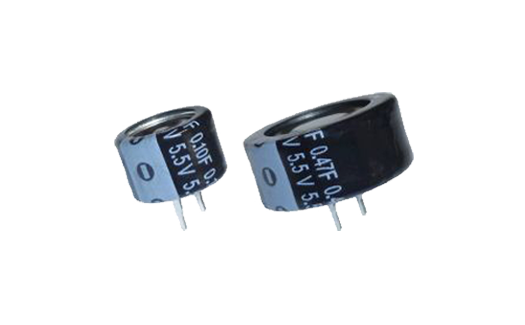

EEC-F5R5H474N Electric Double Layer Capacitors (Gold) by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Body Type | Coin type (multi-layer structure) |
|---|---|
| Rated Voltage (V) | 5.5 |
| Capacitance (F) | 0.47 |
| Capacitance Tolerance (%) | -20 to 80 |
| E.S.R.-1 (Max. Value) (Ω) | 75 |
| Operating Temperature Range (°C) | -40 to 85 |
| Body Diameter (mm) | 21.5 |
| Body Length (mm) | 21.5 |
| Width (mm) | 21.5 |
| Height (mm) | 9.5 |
| Lead (Terminal) Pitch (mm) | 5 |
| Endurance (h) | 1000 |
| Forming & Packaging Feature | Tray packing |
| Minimum Packaging Quantity (PCS.) | 100 |
| Minimum Packaging Quantity (pieces) | 100 |
| Minimum packaging quantity (piece) | 100 |
| Weight (Typ.) (g) | 10 |
Alternative Descriptions
| Supercapacitor, 0.47 F, 5.5 V, Radial Leaded, -20%, +80%, 5 mm, 1000 hours @ 85�C, Coin | Avnet Abacus |
