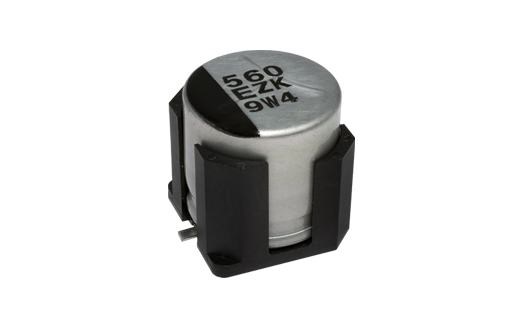

EEH-ZK1E331UV Polymer Capacitors by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Where to Buy
Prices starting from US$0.0310
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.67
|
870
in stock
|
Buy Now |
|
Schukat Electronic
from US$1.03
|
870
in stock
|
Buy Now |
|
Future Electronics
from US$1.33
|
500
in stock
|
Buy Now |
|
RS
from US$0.84
|
205
in stock
|
Buy Now |
|
Newark Electronics
from US$1.17
|
125
in stock
|
Buy Now |
|
element14
from US$1.06
|
37
in stock
|
Buy Now |
|
Farnell
from US$0.70
|
37
in stock
|
Buy Now |
|
|
RS Americas
from US$0.0310
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.73
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$1.00
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Body Type | Surface mount type (vertical mount style) |
|---|---|
| Polarity Type | Polar |
| Rated Voltage (V) | 25 |
| Capacitance (µF) | 330 |
| Capacitance Tolerance (%) | -20 to 20 |
| Tangent Of Loss Angle (Max.) | 0.14 |
| Leakage Current (Max.) (μA) | 82.5 |
| Operating Temperature Range (°C) | -55 to 125 |
| Body Diameter (mm) | 8 |
| Body Length (mm) | 10.5 |
| Rated Ripple Current (Freq.) (Hz) | 100000 |
| Rated Ripple Current (mA) | 2000 |
| Rated Ripple Current (Unit) | ｍArms |
| E.S.R.-1 (Frequency) (Hz) | 100000 |
| E.S.R.-1 (Max. Value) (mΩ) | 27 |
| Endurance (h) | 4000 |
| Forming & Packaging Feature | Embossed carrier taping (reel packing) |
| Appearance | Sheathless (metal case) |
| Minimum packaging quantity (piece) | 500 |
| Minimum Packaging Quantity (pieces) | 500 |
| Weight (Typ.) (g) | 0.994 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Panasonic Elektrolyt-Kondensator 330 µF 25 V 20 % (Ø x H) 8 mm x 10.5 mm 1 St. | Conrad |
| Hyb. SMD El-Cap. 330uF 25V 8x10,5mm | Schukat Electronic |
| ZKU Series 25 v 330 uf 125c 10x10.5mm High Vibration SMD Hybrid Aluminum Polymer | Future Electronics |
| Panasonic EEHZK1E331UV Polymer Capacitor | RS |
| Cap, 330Uf, 25V, Alu Elec, Hybrid, Smd | Newark Electronics |
| CAP, 330UF, 25VDC, ALU ELEC, HYBRID, SMD | element14 |
| HYBRID ZKU CAPACITOR 25VCD 330UF 27MOHM | RS Americas |
| 330UF 25V ESR=27 | TTI Americas |
