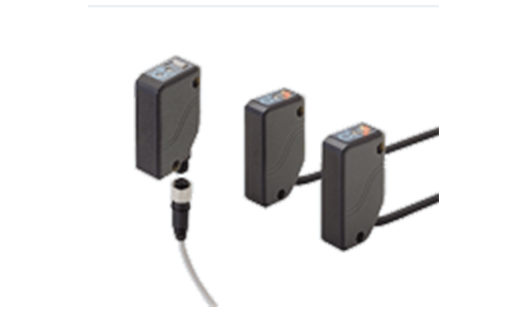

EQ-34-PN-J Industrial Sensors by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| CE Marking Directive Compliance | EMC Directive, RoHS Directive |
|---|---|
| Adjustable Range | 0.2 to 2 m 0.656 to 6.562 ft (Note) The adjustable range stands for the maximum sensing range which can be set with the adjuster. The sensor can detect an object 0.1 m 0.328 ft , or more, away. |
| Sensing Range (With White Non-Glossy Paper at Setting Distance 2 m 6.562 ft) | 0.1 to 2 m 0.328 to 6.562 ft |
| Hysteresis | 10 % or less of operation distance (With white non-glossy paper) |
| Repeatability | Along sensing axis: 10 mm 0.394 in or less, Perpendicular to sensing axis: 1 mm 0.039 in or less (with white non-glossy paper) |
| Supply Voltage | 10 to 30 V DC Ripple P-P 10 % or less |
| Current Consumption | 55 mA or less |
| Output | PNP open-collector transistor - Maximum source current: 100 mA - Applied voltage: 30 V DC or less (between output and + V) - Residual voltage: 1 V or less (at 100 mA source current), 0.4 V or less (at 16 mA source current) |
| Output: Utilization Category | DC-12 or DC-13 |
| Output: Output Operation | Switchable either Detection-ON or Detection-OFF |
| Output: Short-Circuit Protection | Incorporated |
| Response Time | 2 ms or less |
| Operation Indicator | Red LED (lights up when the output is ON) |
| Stability Indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Distance Adjuster | 2-turn mechanical adjuster with pointer |
| Automatic Interference Prevention Function | Incorporated (Note) Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects. |
| Pollution Degree | 3 (Industrial environment) |
| Protection | IP67 (IEC) |
| Ambient Temperature | -20 to +55 ℃ -4 to +131 ℉ (No dew condensation or icing allowed), Storage: -25 to +70 ℃ -13 to +158 ℉ |
| Ambient Humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient Illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Voltage Withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation Resistance | 20 MOhm , or more, with 250 V megger between all supply terminals connected together and enclosure |
| Vibration Resistance | 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Shock Resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each |
| Emitting Element | Infrared LED (Peak emission wavelength: 880 nm 0.035 mil , modulated) |
| Material | Enclosure: Polyalylate and Polyethylene terephthalate Lens: Polyalylate |
| Cable | 0.3 mm2 3-core cabtyre cable, 2 m 6.562 ft long |
| Cable Extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight (Typ.) | Net weight: 150 g approx Gross weight: 200 g approx |
| Accessory | Adjusting screwdriver: 1 pc. |
